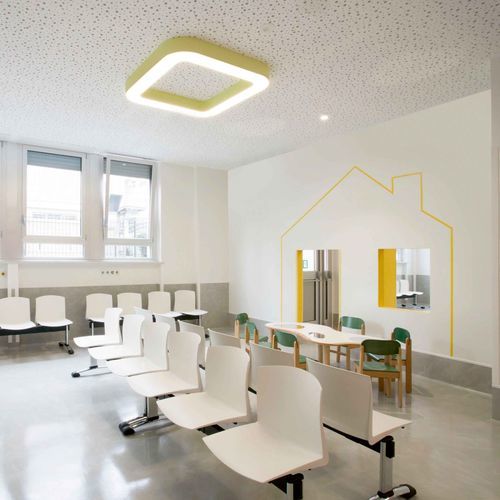

Surface-mounted light fixture QUANTUM

LEDcurvedsquare

The surface-mounted light is made of aluminum extrusion profile. Design inspired by natural forms and structures in curved lines creates harmonious aesthetics. The photometric cover is optionally available in the variants: a diffuse and translucent PMMA cover or a microprismatic PMMA variant with optimal anti-glare properties, achieved through a backlit, multi-layered microprism optics. High-quality design without visible screws. The weld seams of the rolled profile are not visible. Optional customization with "IDENTITY" engraving possible. Charming "SOFT-EDGE" design ensures unparalleled shaping. A powder coating of 29 colors can be chosen for an element of the luminaire. RAL colors can also be made to order for individual requests. The ballast is integrated and allows operation at a voltage of 220-240V volts at (50/60Hz Hz). The luminaire is not dimmable. 3-pole terminal block. The direct light component can be chosen from the light colors 2700K, 3000K, 3500K or 4000K. A CRI of 90+ results in maximum color fidelity of the lighting. The light source has a color tolerance (initial MacAdam/SDCM) of: 3 ellipses. Long lifespan of up to 50,000 operating hours. Flicker-free operation possible when using flicker-free electronic ballasts. The luminaire emits light directly. The LED light source can be replaced by authorized personnel. All requirements and specifications according to standard EN 60598-1 are fully met.
