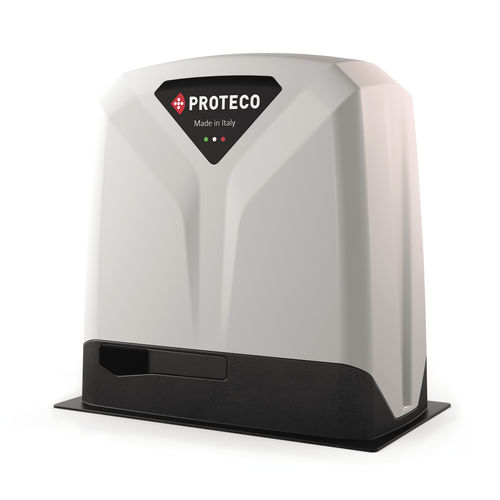

Sliding gate automation MATRIX

Complete range of high-performance sliding systems for industrial and heavy-duty gates. Smart designed in four different versions for sliding gates up to 2500 Kg. BRUSHLESS (R)EVOLUTION 6-STEPS digital motor version for HIGH INTENSIVE USE: can manage up to 250 openings per day. HI-SPEED version with opening speed up 20m/min for gates up to1800 Kg. POWER SOFT START extra power during deceleration and ELECTRONIC BRAKING SYSTEM to ensure inertia control even on very heavy gates. M4 and M6 module steel cog-wheel for constantly smooth movement transmission. Available with mechanical or magnetic limit switches. SAFETY Full ENCODER control for smart obstacle detection management and MEMO ADAPTIVE technology to fit in different weather conditions and to overcome friction changes, avoiding false-stop issues. TECHNOLOGY Q90 electronic board built on top the gear-motor for easy wiring and better protection. TWINNING function to synchronize two mirror sliding gates. SCHEDULED MAINTENANCE: allows to display the number of openings and to set a countdown for next maintenance service. ENERGY-SAVING function:reduce both the consumption of wired accessories and the system when the automation is in stand-by mode. Optional back-up batteries housing inside the motor (for 48V powered brushless version). Direct plug to manage traditional and resistive (8K2Ω) type safety edges.
