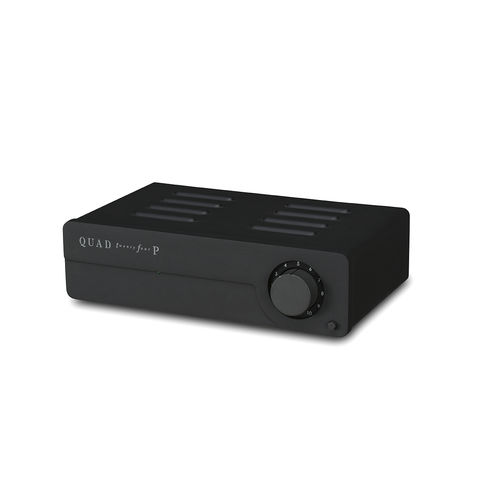

With the analogue purist in mind the Twenty Four P has a moving magnet / moving coil toggle switch and direct / variable level control over volumes for use with all kinds of amplification. Unlike the power amplifiers, the Quad pre amplifiers utilise a completely new design. Together with transformers designed by one of the world's leading authorities and relay input switching the musical signal is preserved in its purest form - pursuant to the philosophy of the theoretical perfect amplifier which a Peter Walker himself stated, is 'a straight wire with gain'.
Specifications
Valve Complement4 x 6111
Total Harmonic Distortion<0.08% (A-weighted)
Frequency Response (RIAA/IEC equalisation)20Hz - 20kHz (+/-0.5dB)
Hum and Noise (mm position,input shorted)Better than 60dB
Input Impedance
Moving Magnet47kΩ
Moving Coil10Ω
Stage Gain
High Sensitivity1.3mV (MM)/130µV (MC)
Medium Sensitivity2.6mV (MM) / 260µV (MC)
Low Sensitivity5.2mV (MM) / 520µV (MC)
Nominal Output Level(ref 5.2mV, MM, Low)1.0V
InputsSelectable MM/MC cartridge
Outputs1 x Fixed line level, 1 x Variable line level
Power Consumption15VA maximum
Dimensions (H x W x D)90 x 220 x 300mm
