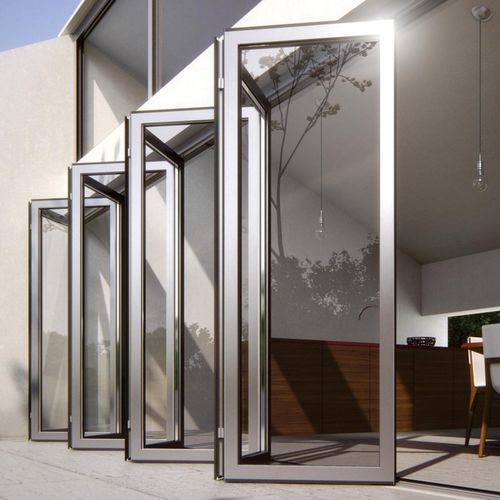

Sliding patio door RABEL 3650

foldingdouble leafhigh

The system Rabel3650 Super Thermal has been designed for the fabrication of large fold and slide doors up to 3,5 meters height and 1,2 meters wide per leaf. Its main application is for commercial and residential buildings where high thermal insulation is required in combination with a low bottom track. The system is based on a basic leaf width of 60mm. Three different threshold designs are available making it possible to have a fully flat threshold as well as a high level of water tightness fulfilling the needs of most projects. Since the system is also available with gaskets along the whole perimeter as well as a drainage gutter, its performance in water tightness and air permeability is remarkable. It supports all typologies as well as corner fabrications. In the standard equipment a two point locking point is included which can be upgraded into a multiple point burglary resistance system.
