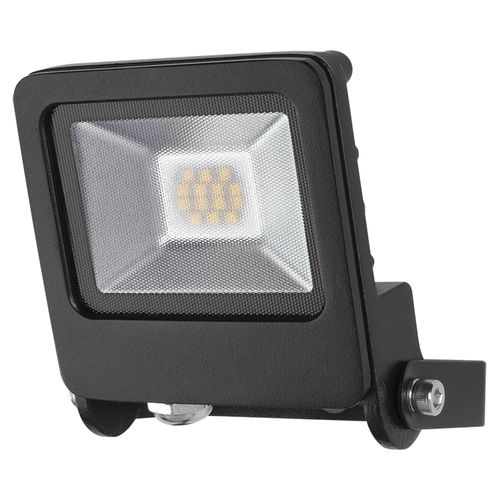

IP65 floodlight FLLA1758

LEDcommercialoutdoor

Logistic Data Article No. FLLA1758 Code LED FLOODLIGHT 10W/4000K BK IP65 Product EAN 4003556005228 Customs tariff no. 94054099 Box quantitiy (pcs.) 12 EAN Box 4003556405226 Gross weight of box in kg 4.383 Length of box in m 0.29 Width of box in m 0.23 Height of box in m 0.2 ETIM class EC001744 ETIM class name Downlight/spot/floodlight Weight 318 g Product status Phase Out Electric Parameters Energy Consumption kWh/1000h 10 Power factor ≥ 0.9 Nominal voltage 220-240 V Voltage type AC Nominal current (mA) 46 mA Inrush current 1,58 A Light Application Parameters Beam angle 110 ° Luminous efficiency 70 lm/W Colour of light White Colour temperature 4000 K Colour rendering index CRI 80-89 Colour Stability ≤ 6 sdcm Light sharing Symmetric Service Life Lifetime L70B50 30000 h No. switching cycles ≥ 100000 Specification Length 101 mm Length 101 mm Height 29 mm Width 125 mm Cable Length 1 m dimmable No Impact strength IK06 Material Aluminium Degree of protection (IP) IP65 Notes on Operation Type of connection Feed-in cable, 3-pole Max. number of luminaires per B10 circuit braker 173 Max. number of luminaires per B16 circuit braker 278 Max. number of luminaires per C16 circuit braker 278 Permissible storage temperture -30-+70 °C Ambient temperatures -20…+40 °C Luminaire with limited surface temperature, sign "D“ No Type of control gear Not required
