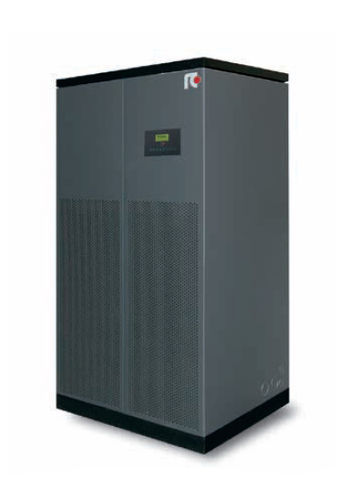

Direct expansion air conditioner in over versions, with built-in water cooled condenser.
NEXT MTR air conditioners are available in over version.
Up-flow air delivery (over)
The air distribution is from the top of the unit directly in to the room.
The air flow in each area is predetermined during the design stage and it is not dependent on the actual state of the load to be dissipated.
Full compliance with CE Directives and Norms.
Design, manufacturing and testing according to ISO 9001.
Cooling capacity: 7,0 ÷ 15,4 kW
Main components
Base and housing in epoxy painted aluminium profile frame and panels in galvanized steel sheet externally coated with pvC film.
Units equiped with:
• Plug fans.
• Scroll compressor.
• Electric heating system.
• Humidification and dehumidification system.
• Compressor capacity control.
• Hot gas re-heating system.
• Electrical box in separate compartment.
• Main switch with door lock safety.
• MP.COM microprocessor control.
