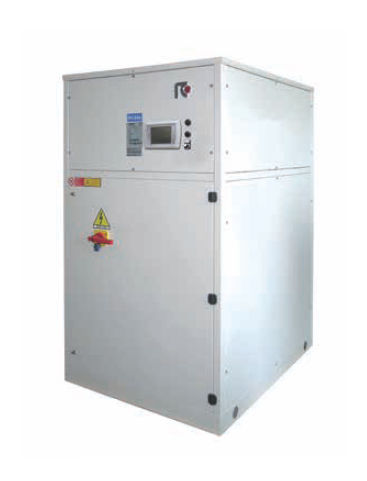

Water-cooled chiller FRIGO TURBO K.

compact

MAIN FEATURES • Water cooled liquid chiller. • 1 size designed for installation in parallel. • EER 4,39. • ESEER 7,16. • Oil-free centrifugal compressors with magnetic levitation bearings. • Inverter driven. • R134a Refrigerant charge. • Single refrigerant circuit. • Electronic expansion valve. • Plate type heat exchangers. • Suitable for indoor installation. MAIN BENEFITS • Compact version with plate heat exchangers. 270kW at just 1,3m2. • Installation in parallel of many units, to achieve high cooling capacity in reduced spaces. • No need of power factor correction. • Minimum starting current (LRA) • High ESEER. • Quiet operation. • Microprocessor control system with 7” touch screen display. • Extremely easily of maintenance. • Complete set of components dedicated to the safety of the unity. • Eurovent Certification. INDOOR INSTALLATION The machines are designed for indoor installation. DESIGNED FOR INSTALLATION IN PARALLEL MAGNETIC LEVITATION CENTRIFUGAL COMPRESSOR The Turbo FL liquid chillers are equipped with two-stage centrifugal compressor with variable speed, which is able to follow punctually plant demands, obtaining values of energy efficiency ratio (EER) growing in a narrowing of the cooling load. The compressors of the TURBO FL liquid chillers are equipped with magnetic levitation oil-free bearings which compared to traditional ball bearings, completely eliminate all the maintenance procedures of lubrication. WORKING LIMITS IN COOLING MODE Chilled water outlet temperature: 4÷18°C Condenser outlet water temperature: 20÷52°C
