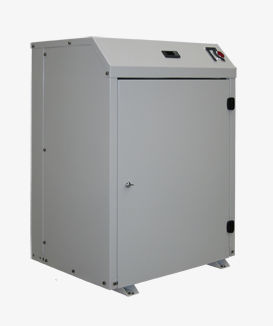

Water to water heat pump liquid chillers suitable for indoor installation.
Full compliance with CE Directives and Norms.
Design, manufacturing and testing according to ISO 9001.
Cooling capacity: 4,3 ÷ 31,4 kW
Heating capacity: 4,9 ÷ 35,2 kW
Main components
Housing in epoxy painted galvanized steel sheet.
Thermo-acoustic lining inside the unit.
Units equipped with:
• Scroll compressor.
• Refrigerant charge R410A.
• Welded plate evaporator.
• Welded plate condenser.
• Cycle reversing valve.
• Microprocessor control.
• Water flow control by pressure switch.
• 3-speed water pump.
• Electrical box in separate compartment.
• Main switch.
Power supply: 230V/1/50Hz up to model M13
Power supply: 400V/3/50Hz from model T06
