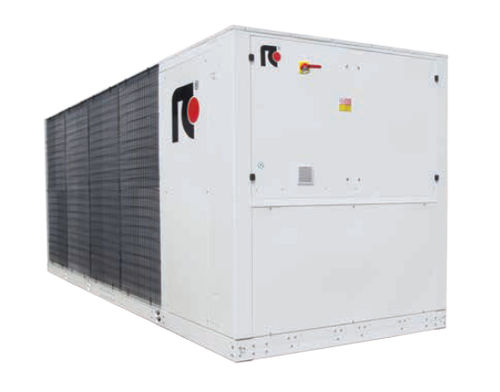

Air-cooled chiller MULTIPLO SCREW.

Packaged multifunction liquid chillers, for independent or simultaneous production of chilled water for cooling and hot water for heating (4 pipes plant), throughout the year. The machines are made with weather resistant materials and suitable for outdoor installation. Framework with sections of thick steel for high resistance to the greatest stress during handling and transport. Machines supply fully assembled with refrigerant charge and control systems. The installation requires electrical and hydraulic connections only allowing high costs and time reduction. Final assembly on all machines before shipment including running test, reading and monitoring of operating parameters, alarms simulation and visual check. SERIES IDENTIFICATION Machine size “U” – Machines equipped with gas/air heat echanger in vertical position and equipped with screw compressors, axial fans and plate type gas/water heay exchanger from model 200 V2 U04 up to model 530 V2 U08 included, and shall and tube type from model 580 V2 U10 up to model 1070 V2 U14. Horizontal air suction and vertical discharg MULTIPLO SCREW “U” – Multifunction chillers. Cooling capacity 190 ÷ 1153 kW Heating capacity 256 ÷ 1490 kW Design, assembly and test as per the Company Quality Assurance program in full compliance with ISO 9001. RC Group has been the first Italian company in its segment to get the ISO 9001 in October 13th, 1991 with certificate ICIM 0018. The machines are in full compliance with European Norms 2006/42CE, 2006/95CE, 2004/108CE, 97/23CE and subsequent amendments.
