Pedestrian bollard BORNE DROITE 4 H42

decorativestonefor public space

Description

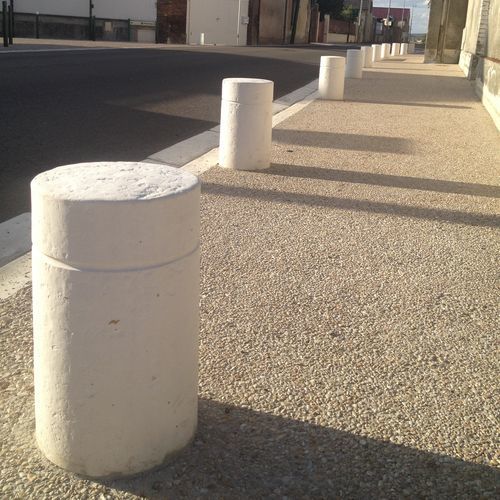

Straight bollard model 4 H42 with sawn-stone appearance. Designed as a decorative and protective urban element for pedestrian areas and landscaped environments.

Sales data

• Unit of sale: Unit
• Top diameter: 25 cm
• Base width: 26.5 cm
• Height: 42 cm
• Weight: 50 kg (per unit)
• Packaging: 16 units per pallet (disposable pallet 110×90)

Mechanical specifications

• Splitting (flexural) strength: 4.7 MPa
• Compressive strength: 50 MPa (test specimen 16×32)
• Water absorption: < 6 %
• Freeze/thaw mass loss: 0.758 kg/m²

Standards
None / Decorative element

Installation

• Install between +5°C and +30°C on a sound support and compacted excavation base.
• Concrete footing must be at least 10 cm thick and of class C 16/20 (Standard NF EN 206-1).
• The concrete must be fresh and its width must be the bollard width increased by 10 cm in front and behind the curb.
• Bollards must be braced at the rear by a fillet made with the same concrete.
• Possible insertion of a metal anchor for chemical anchoring.

Maintenance

• Products are designed to retain an attractive surface with minimum maintenance; natural patina may develop over time.
• Applying a mineralizing treatment facilitates cleaning and prolongs the original surface appearance.
• Not recommended: high-pressure washers or acidic products (risk of irreversible alterations).
• Use de-icing salts in reasonable quantities without leaving excessive stagnant residues.

Finishes

• Available finish: sawn stone

Technical characteristics

• Unit of sale: Unit
• Top diameter: 25 cm
• Base width: 26.5 cm
• Height: 42 cm
• Weight: 50 kg
• Packaging: 16 units per pallet (disposable pallet 110×90)
• Splitting strength: 4.7 MPa
• Compressive strength: 50 MPa (test specimen 16×32)
• Water absorption: < 6 %
• Freeze/thaw: 0.758 kg/m²
• Regulatory framework: None / Decorative element
• Finish: sawn stone
