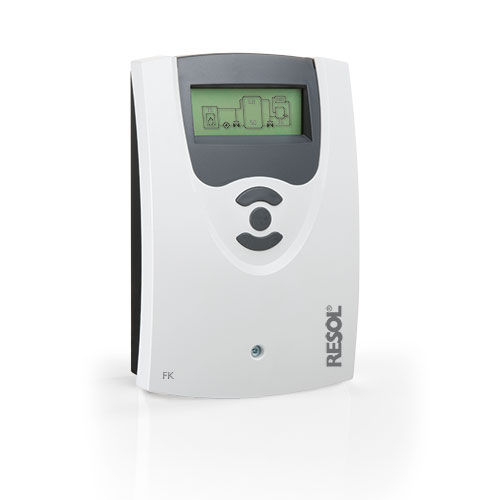

The DeltaTherm® FK Solid fuel boiler controller has been especially developed for systems with solid fuel boilers, water heating stoves or pellet stove heating systems. With the integrated PWM outputs, the DeltaTherm® FK can manage the speed control of 2 high-efficiency pumps. With its easily configurable optional functions, the versatile software allows e. g. for the control of an electronic mixer for the return mixing function, a thermostatic backup heating, a target temperature control function and many more.
2 relay outputs, 4 temperature sensor inputs
2 PWM outputs for the speed control of high-efficiency pumps
Control of an electronic mixer for the return mixing function
Heating backup
Heat exchange function
Thermostatic backup heating
Temperature sensor inputs:4
Sensor type:Pt1000
Semiconductor relays:2
Potential-free relay:-
PWM/0-10 V outputs:2
Software
Pre-configured systems:8
Mixed heating circuits:-
Mixer control weather-compensated:-
Mixer control with target temperature:check
Operating modes:-
Heating circuit antifreeze function:-
Heating circuit chimney sweeper function:-
Screed drying function:-
Room thermostats:-
Thermal disinfection:-
DHW heating:check
Circulation:-
Solid fuel boilder:check
Heating circuit return preheating:check
Return mixing function:check
Thermostatic afterheating:check
Weather-compensated afterheating:-
Night correction:-
Boiler protection:check
Start-up/Overrun:-
Afterheating suppression:-
DHW priority:-
Heat exchange:check
Mixer:check
Parallel relay:-
Irradiation switch:-
Error relay:-
Function block:-
Zone loading:-
HQM:-
0-10 V boiler control:
Room control:
Remote access with VBus®Touch HC:
