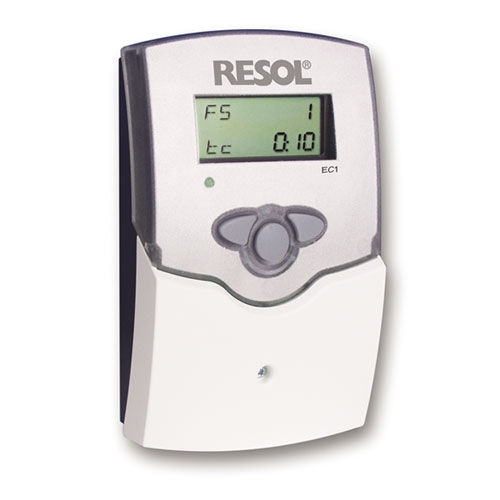

Wall-mounted heating controller EC1

remote-controlledfor water heaters

Variable controller for circulation systems The purpose of a circulation system is to provide the consumer with hot water as quick as possible when opening the tap. The pipe line system for the supply of domestic water is simultaneously used as a circulation system so that by means of the circulation pump, water is passed through the water pipes even without having to open the tap. Via a flow switch in the cold water pipe, the unit monitors the water draw off. After opening the tap for a short moment, the circulation pump is switched on and will be switched off again due to the adjusted runtime. The tap operates like a “remote control“. This circulation pump control function is an eco-friendly and energy-saving solution in line with demand. Energy savings by economic pump control Tap station as remote control Hot water without delay Easy to integrate into existing systems Inputs: 1 sensor input for flow switch Outputs: 1 electromechanical relay Power supply: 220 ... 240 V~ (50 ... 60 Hz) Power consumption: approx. 2 VA Housing: plastic, PC-ABS and PMMA Mounting: wall mounting, mounting into patch panel is also possible Indication/Display: LC display, multi-functional combined display with pictograms, two 2-digit text fields and two 4-digit 7-segment displays as well as one bicoloured led. Operation: by 3 push buttons at the front of the housing Ingress protection: IP 20 / IEC 60529 Dimensions: 172 x 110 x 49 mm Controller adjustment: menu-driven Safety advice Please pay attention to the following safety advice in order to avoid danger and damage to people and property. Instructions Attention must be paid to the valid local standards, regulations and directives!
