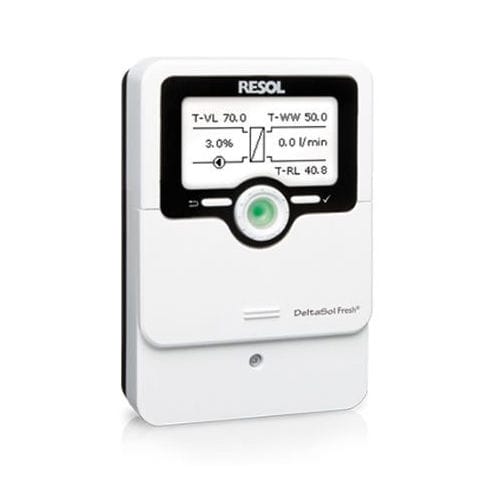

Wall-mounted heating controller DELTASOL FRESH®

for solar water heaters

RESOL offers a range of solutions for the control of DHW exchange modules. The new controller platform is equipped with an enhanced and faster control algorithm and enables the precise and energy-effi cient control of the draw-off temperature. In order to achieve the best possible control quality, our laboratories run a number of dimensioning tests and check measurements. Classifi cation of control quality is conducted on the basis of research results of the Rapperswil Institute for Solar Technology and the Institute for Solar Energy Research in Hamelin (ISFH). Constantly high control quality by adaptation to the end user system by means of self-learning neural networks Customised control for systems with or without circulation Flexible circulation function for different user profi les, also available with thermal disinfection Reliable DHW heating even in the case of a fault condition Control of PWM and LIN bus pumps Adaptable to many commonly used flow rate sensors Commissioning menu for easy confi guration Clear system graphic in the status menu Cascades of up to 6 DHW exchange controllers or stations Inputs: 7 inputs for Pt1000 temperature sensors, 1 flow rate sensor: VBus®3 (e.g. digital Grundfos Direct Sensor ™) or 0-5 V interface or 0-500 Hz interface or impulse input Outputs: 3 semiconductor relays and 3 PWM outputs (with LIN bus 1 PWM output), 1 potential-free extra-low voltage relay Switching capacity: 1 (1) A 240 V~ (semiconductor relay) 1 (1) A 30 V = (potential-free relay) Total switching capacity: 4 A 240 V~ Power supply: 100 – 240 V~ (50 – 60 Hz) Supply connection: type Y attachment Mode of operation: type 1.B.C.Y Rated impulse voltage: 2,5 kV
