Aluminum sliding system HIFINITY

glass doorpatiomagnetic

Overview

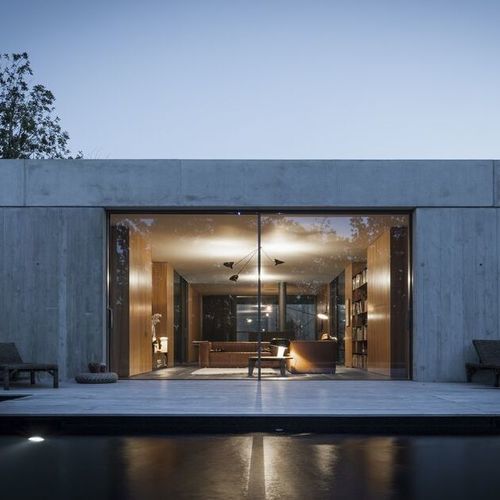

HiFinity is a minimalist aluminium sliding glass system designed to maximise glazed surfaces and uninterrupted views. The system supports large, heavy vents and offers multiple insulation and configuration options suitable for contemporary low-energy architecture.

Key benefits

• Slim sightlines and large glazed areas
• Variants for manual and assisted operation
• Options compatible with passive and low-energy buildings

Labels & Certifications

• Archiproducts Awards
• Henry Van De Velde
• Minergie
• Cradle to Cradle Bronze

Product variants
Type

• Slider — Reynaers wheel carriage for smooth operation of heavy vents.
• Magnetic Slider — Magnetic rail solution enabling manual operation of triple-glazed vents up to 600 kg.

Insulation

• Standard — Double glazing for year-round indoor comfort.
• High Insulation — Triple glazing option for improved thermal performance.

Safety

• Burglarproof — Variant with enhanced resistance to forced entry.

Other variants & special solutions

• 2-rail — Standard configuration, combinable with multiple opening types.
• 3-rail — Third vent added so elements stack for wider openings.
• Open Corner — 90° sliding corner solution to connect interior and exterior.
• Pocket — Vents retract into the wall for an uninterrupted view.
• Zero Threshold — Wheelchair-accessible solution with continuous flooring or visible aluminium profile finish.

Product options / features

• Concealed Drainage — Integrated drainage without visible covers.
• Gutter — Improved water performance without additional thresholds.
• Flyscreen — Integrated insect screen options.
• Balustrade — Integrated safety balustrade solutions.
• Motorised — Motorised operation with remote control.
• Access Control — Integration with building access and smart home systems.
• Glass Corner — Glass-to-glass connection without obstructive profiles.
• Zero Threshold — Flush entrance supporting continuous interior flooring.

Technical details (summary)
Thermal insulation: Uw = 0.8 W/m²K
Air - Water - Wind: High
Performance class (Air/Water/Wind): 4 / E750 / C5
Acoustics: Rw(C;Ctr) = 46(-1;-3) dB
Height vent: Max 4000 mm
Width vent: Max 3500 mm
Max weight: Vent = 750 kg; Fixed = 1200 kg

Technical specifications

• Product name: HiFinity
• Brand: Reynaers Aluminium
• Thermal insulation (Uw): 0.8 W/m²K
• Air-water-wind performance: 4 / E750 / C5 (High)
• Acoustic performance: Rw(C;Ctr) = 46(-1;-3) dB
• Maximum vent height: 4000 mm
• Maximum vent width: 3500 mm
• Maximum vent weight: 750 kg (vent); 1200 kg (fixed)
• Available glazing options: double glazing (standard), triple glazing (high insulation)
• Available operation variants: Slider, Magnetic Slider, Motorised
• Available configurations: 2-rail, 3-rail, Pocket, Open Corner, Zero Threshold, Glass Corner
