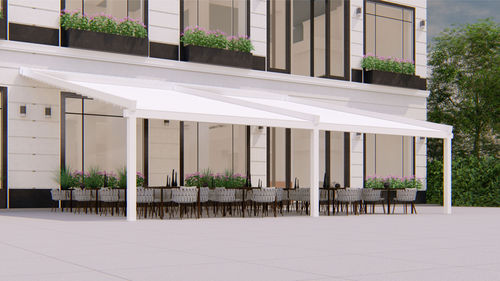

Wall-mounted pergola ALBORI BIG

painted aluminumPVCmotorized

To respond to the need of bigger coverings, RGM has realized the ALBORI BIG, a structure capable to cover a surface of 130 mq. Despite its majesty and the protrusion of 10 mt, the pergola has a refined style such as the Albori and it has the same elegance talking about the design. As the entire family Albori, also in this case the columns (patent NA2015U000009) can be personalized. DETAILS ALBORI BIG can be realizable in 1,2 or 3 spans. The width for 1 span is 500 cm, for 2 spans 900 cm and 3 spans 1300 cm. The maximum protrusion is always 1000 cm for each form. The structure in stainless and aluminium can be painted in standard white RAL 9010, opaque white and iron grey, or, on request, personalized with other RAL colours. The cloth is available in white or ivory. CHARACTERISTICS – Guide profile in aluminium 100×180 mm – Columns 150×150 mm STANDARD EQUIPMENT COLOURS RAL 9010 Opaque white Iron gray For request of other colours RAL increase of the 10%. COLUMNS DECORATED For customers who want an original and valued style, RGM has created different decorations to insert in its patented columns. Aluminium, woos ao artisan ceramic: a wide choice of colours and materials to personalise or enlighten your outdoor! STANDARD EQUIPMENT CHARACT. AND ACCESSORIES 1 SPAN Maximum width 5 m. PVC Precontraint 622 PVC Opatex Opatex Pro Opatex Way Electronic single motor 85 (max measures 450 x 1000) Electronic single motor 100 Remote control 1 channel Remote control multichannel Rain kit (necessary for every column)
