Surface mounted spotlight VERTICO

wall-mountedceiling-mountedLED

Overview
Rotatable and swivelling mounted spotlight VERTICO designed for versatile interior lighting schemes. Compact aluminium housing with anodised finish and integrated lens optics enable adjustable accent lighting and flexible installation options.

Product highlights

• Design by RIBAG Design Studio: timeless milled aluminium contours with a functional focusing ring as a defining element.
• Focusing ring with high-quality glass lens enabling an infinitely variable beam angle from 20°–60° with uniform distribution and minimal scattering loss.
• Functionality: 360° rotation and 90° swivel. Available as surface-mounted spotlight, 2-lamp profile spotlight and track-mounted spotlight.
• Finish options: black anodised, natural anodised and white (RAL 9003) to suit different interior schemes.
• Optical performance: high colour rendering (CRI > 90), well-defined light cones and glare control with UGR ≤ 22.
• Tunable white option (mounted lamp with external control gear): adjustable range 2200 K–5000 K.

Variants / Use cases

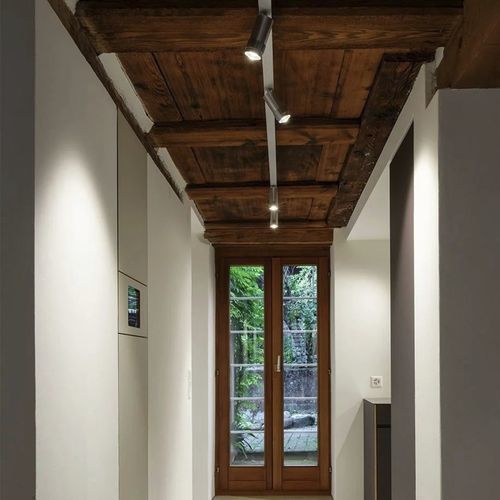

• Surface-mounted VERTICO for ceiling or wall mounting (track variant not suitable for wall).
• Mounted spotlight with external control gear (ext. control gear) offering tunable white and various service/control options.
• Track-mounted VERTICO for 3-phase tracks (compatible with Global Trac, EUTRAC*, Hoffmeister*, Zumtobel, Concord, Stucchi; *some systems support only on/off). Track variant: not suitable for wall mounting.

Visual comfort & applications
Designed for adjustable accent lighting in commercial and public interiors. Precise beam control and high CRI support visual comfort and accurate colour rendering for display, retail and architectural lighting.

Technical specifications

• Mounting: ceiling or wall mounting possible (track variant: mountable on 3-phase track; not suitable for wall).
• Function: 360° rotation and 90° swivel.
• Housing / material: brushed ultra-pure aluminium with anodised surfaces.
• Optics: high-quality glass lens; infinitely adjustable beam angle 20°–60°; UGR ≤ 22.
• Lamps / light source: LED, CRI > 90; colour temperatures 2700 K and 3000 K; tunable white 2200 K–5000 K available for certain variants; note: up to max. 30% lumen reduction with variable beam angle.
• Service life: 50,000 h (L90 B10, Ta 25°C).
• Control gear: variants include EB 230 V / 50 Hz with DALI and external control gear options (PS 230 V / 50 Hz, constant current 350 mA – order separately depending on variant).
• Protection class: I (some external control gear variants: III).
• Ingress protection: IP20.
• Energy efficiency class: D.
