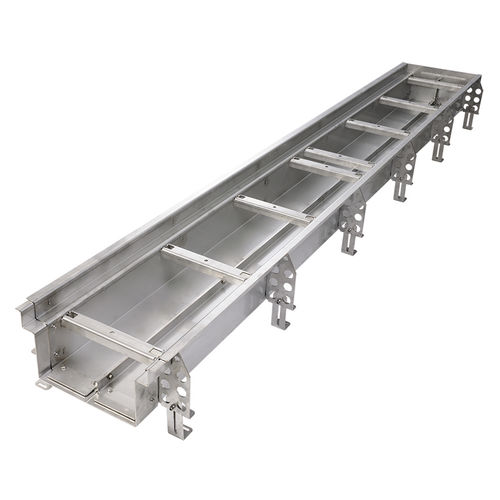

Drainage channel with grating CARGO

galvanised steel gratestainless steel gratefor public spaces

reliable distribution of power, IT and water lines > with integrated expansion joint > designed to withstand a wheel load of up to 10 tons > can be raised or lowered using adjustable feet Whether for electricity, IT or water – our Cargo supply channel can be used to lay the necessary lines in areas exposed to vehicle traffic. Designed to take a wheel load of up to 10 tons, cables and pipes are optimally protected inside the generously proportioned channel even under the weight of forklift trucks and delivery vehicles. The Cargo also features an integrated expansion joint: its two-part construction with a partition that runs the length of the channel enables its flexible integration in the concrete in line with the joint plan. Using height-adjustable feet, the channel can also be optimally adapted to the planned height of the concrete floor. Once all channel segments have been connected and are arranged on the substrate, the ground is then filled with concrete. The screw connections fitted along the partition at the factory and the spacers, which also serve as mounting handles, are subsequently removed to free the joint.
