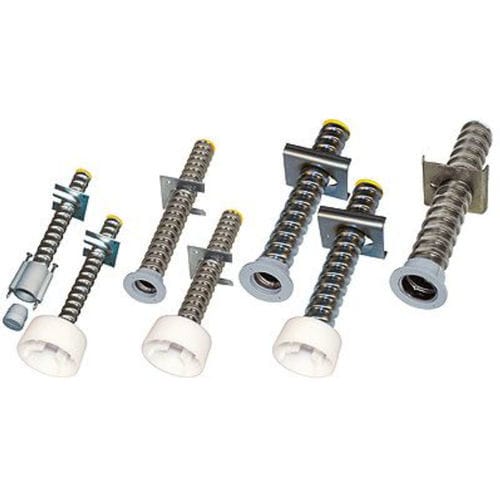

Formwork anchoring system DYWIDAG
metalexteriorfor masonry

Formwork anchoring system - DYWIDAG - ROBUSTA-GAUKEL GmbH & Co. KG - metal / exterior / for masonry
Formwork anchoring system - DYWIDAG - ROBUSTA-GAUKEL GmbH & Co. KG - metal / exterior / for masonry
Formwork anchoring system - DYWIDAG - ROBUSTA-GAUKEL GmbH & Co. KG - metal / exterior / for masonry - image - 2
Add to favorites
Compare this product

Characteristics

Material
metal
Applications
for formwork
Other characteristics
exterior, for masonry

Description

Proven a million times over Inexpensive, non-recoverable installation parts Universal system for fixing anchor tie bars for formwork and bolts for fastening and transportation purposes Can be installed in floors, foundation slabs and walls For in-situ concrete and construction with precast components 4 different anchor diameters available from Ø 15.0 mm to Ø 36.0 mm in conformity with the Dywidag formwork anchoring system Larger Ø 50 and Ø 60 mm sizes can be supplied with special bolts for transporting tunnel segments Anchor sleeve lengths (infinitely variable) tailored to structural dimensions Permissible service loads from 5.0 kN to 60.0 kN Comprehensive selection of hexagonal and transport bolts

Catalogs

Other ROBUSTA-GAUKEL GmbH & Co. KG products

Anchoring technology
