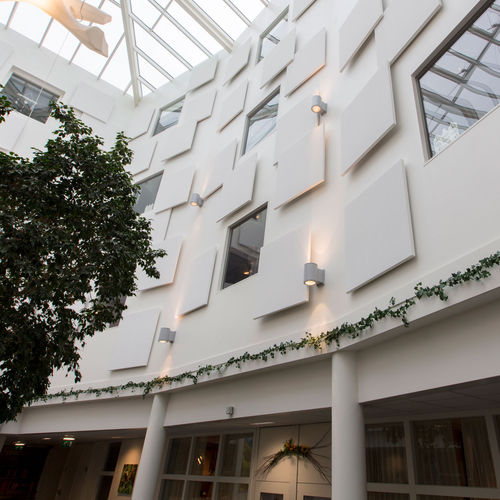

Wall-mounted acoustic panel ECLIPSE®

for facade claddingstone woolrectangular

A smooth, deep matt and super white surface providing high light reflection, light diffusion and anti-static properties, extending its product lifetime Available in a variety of shaped formats with a clean minimalistic A-edge and an unlimited custom colour range using NCS Quick and easy to install with the special wall fixing kit. The fixing kits allow for the panel to be installed in different distances from the wall creating interesting patterns Stone wool panel Visible side: smooth, deep matt, super white painted fleece Rear side: white backing fleece Durable painted edges Colour - White Colour group - Whites NCS - NCS S 0500-N Light reflection - 87 Reaction To Fire - A2-s1,d0, Rockfon Eclipse Rectangle 2360: A2‑s1,d0 (EN 13501-1) - Reaction to fire is classified in accordance with EN 13501-1. Light reflection and light diffusion - 87% light reflection (rear side: 79%) >99% light diffusion - Light reflection expressed in % is measured in accordance with ISO 7724-2. Visual Appearance - Super white surface L value: 94.5. Deep matt surface, perfect in critical side-light Gloss: 0.8 gloss unit at 85° angle - The whiteness (L value) of the product is tested in accordance with ISO 7724 and measured on a scale from 1 (black) to 100 (white). The gloss of the product is tested in accordance with ISO 2813.
