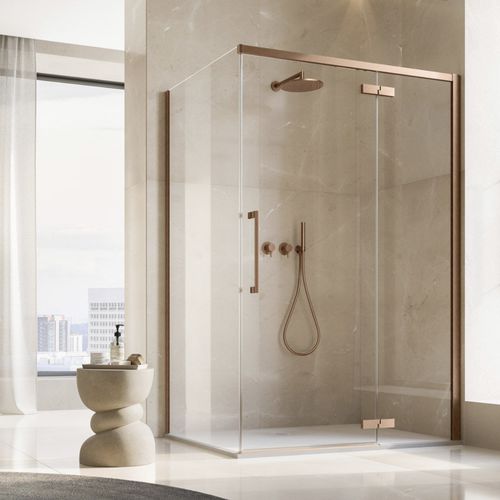

Pivoting shower screen ORIANA

rectangularcornertempered glass

Overview
ORIANA D36T13+D36F1: set composed of a pivot shower door and an inline fixed panel plus an additional fixed panel. Product from the ORIANA range, available in several profile finishes and glass treatments. Configure the shower to your required dimensions and available finishes.

Available finishes (profiles)

• Polished-bright
• Matte black
• Brushed gold
• Metal Champagne (22)
• Metal Bordeaux (23)
• Brushed nickel
• Brushed gunmetal
• Brushed rose gold
• Brushed bronze

Dimensions (standard and made-to-measure)
Dimensions | Width | Height
Standard | D36T13: 900, 1000, 1200, 1300, 1400, 1500, 1600; D36F1: 800, 900, 1000 | D36T13: 2000; D36F1: 2000
Made-to-measure | D36T13: 900 - 1600; D36F1: up to 1200 | D36T13: up to 2000; D36F1: 500 - 2000

Glass

• Available glass: Clear (1 glass option indicated)
• 8 mm safety glass

ORIANA range features

• Standard height 2000 mm
• Product quality compliant with European Standard EN 14428:2008+A1
• Integrated Aquaperle anti-stain treatment
• Available in matte black
• Available finishes: Metal Champagne (22) and Metal Bordeaux (23)
• Available in brushed finishes

D36T13 product features

• 1 glass option available
• 8 mm safety glass
• Large widths - up to 1600 mm
• Made-to-measure possible
• Pivot door - outward opening

D36F1 product features

• 1 glass option available
• 8 mm safety glass
• Large widths - up to 1200 mm
• Made-to-measure possible
• Cutting options available

Additional information
Product configurable via the configurator tool (multiple profile variants and finishes).
