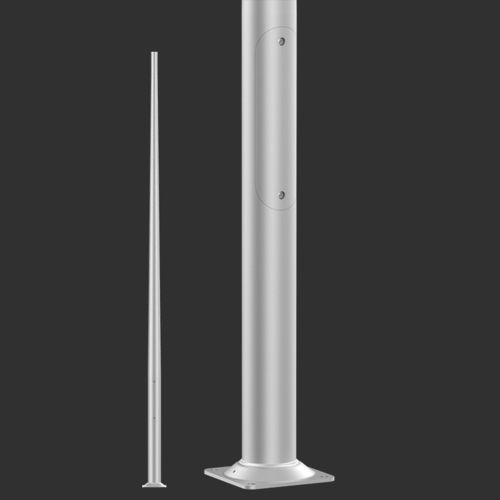

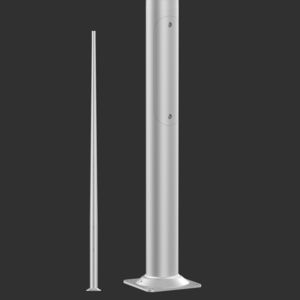

Lighting pole SAL-2,5/B60

aluminum

Material Cones are rolled from aluminum alloy pipes EN AW-6060_ Their base is plated from aluminum alloy plates EN AW-5754. Wiring chamber Each aluminium column has wiring chamber for fuse-box. Wiring chamer cover is being but by laser. Base-plate Base-plate is pressed together with the conical surface, which stiffen the base 10 anodising colours Aluminium columns are anodised Anodising consists in creating the oxide layer on metal surface by electrochemical method Anodisation not only protects the columns against external factors but also gives possibility to dye aluminum in 10 different colors, each with silk finis version. Passive safety 100NE2 Dimension of the base plate: 224/180/8mm Diameter of the column ending: 60mm Height of the kolumn: 2,5m Diameter at the base: 114mm Wall thickness: 3mm Concrete footing / reinforcement basket type: B-50 / Z-50
