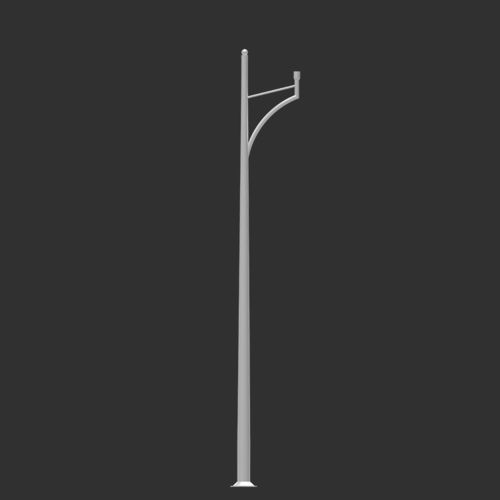

Lighting pole SAL-A1

aluminum

Material Cones are rolled from aluminum alloy pipes EN AW-6060. Their base is plated from aluminum alloy plates EN AW-5754. Wiring chamber Each aluminium column has wiring chamber for fuse-box. Wiring chamer cover is being but by laser. Base-plate Base-plate is being pressed together with the conical surface, which stiffen the base. 10 anodising colours Aluminium columns are anodised. Anodising consists in creating the oxide layer on metal surface by electrochemical method. Anodisation not only protects the columns against external factors but also gives possibility to dye aluminum in 10 different colors, each with silk finis version. Passive safety 100NE2 Dimension of the base plate: 224/180/8mm Diameter of the column ending: 60mm Height of the kolumn: 4m Diameter at the base: 120mm Wall thickness: 4mm Concrete footing / reinforcement basket type: B-50 / Z-50
