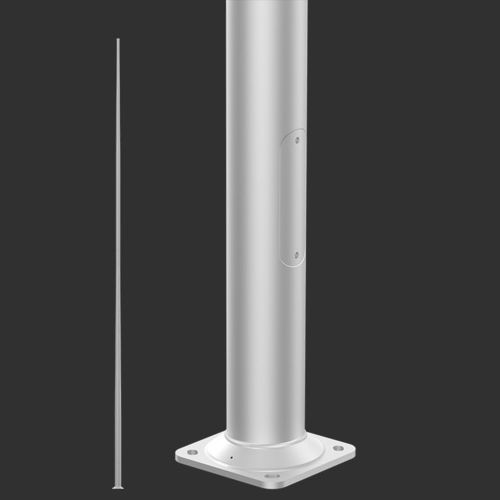

Material
Cones are rolled from aluminum alloy pipes EN AW-6060_ Their base is plated from aluminum alloy plates EN AW-5754.
Wiring chamber
Each aluminium column has wiring chamber for fuse-box. Wiring chamer cover is being but
by laser.
Base-plate
Base-plate is pressed together with the conical surface, which stiffen the base
10 anodising colours
Aluminium columns are anodised Anodising consists in creating the oxide layer on metal
surface by electrochemical method
Anodisation not only protects the columns against external factors but also gives
possibility to dye aluminum in 10 different
colors, each with silk finis version.
Passive safety IOONE2
Dimension of the base plate: 400/300/20mm
Diameter of the column ending: 100mm
Height of the kolumn: 16m
Diameter at the base: 225mm
Wall thickness: 5mm
Concrete footing / reinforcement basket type: B-80 / Z-80
