Material
Cones are rolled from aluminum alloy pipes EN AW-6060. Their base is plated from
aluminum alloy plates EN AW-5754

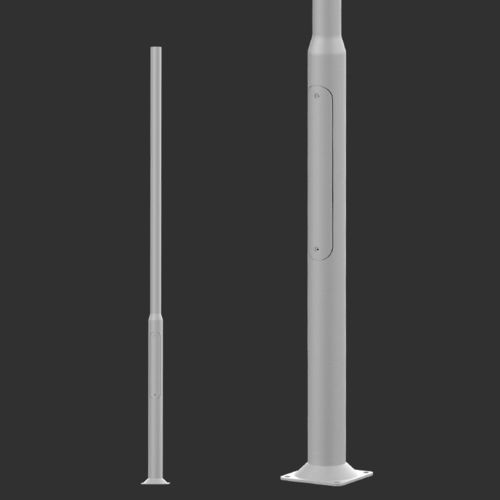

Wiring chamber
Each aluminium column has wiring chamber for fuse-box Wiring chamer cover is being but by laser.
Base-plate
Base-plate is pressed together with the conical surface, which stiffen the base
Purpose

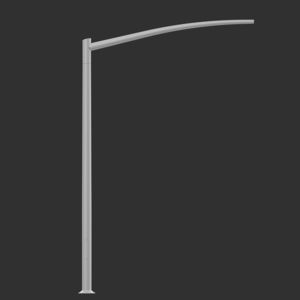

designed for hanging signal devices at road intersections, pedestrian crossings etc
10 anodising colours
Aluminium columns are anodised Anodising consists in creating the oxide layer on metal
surface by electrochemical method
Anodisation not only protects the columns
against external factors but also gives possibility to dye aluminum in 10 different colors, each with silk finis version.
Dimension of the base plate: 224/180/8mm
Diameter of the column ending: 90mm
Height of the kolumn: 3,6m
Diameter at the base: 120mm
Wall thickness: 4mm
Concrete footing / reinforcement basket type: B-50 / Z-50
