Overvoltage protection
Increases the immunity of the luminaire to electrical discharges up to 15 pulses at 10 kV
Driver Philips Xitanium
High-performance and constant current power supply with 7 programmable functions according to customer requirements .
Available functions:
- adjustable output current
- DALI interface or 1-10V (OPTION)
- programmable time programs
- temperature control on the module
- maintaining a constant luminous flux in time
Anodized aluminium body
Inox / black color with anticorrosive and decorative propertiesh
Replaceable LED module
Waterproof LED module. Equipped with 24 LEDs, available in 4 optical circuits

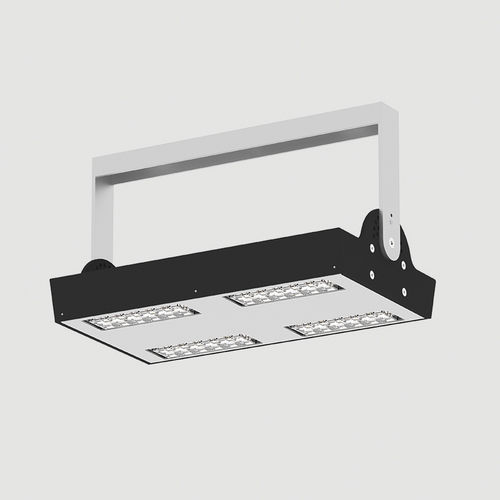

Application: parkings, industrial halls
Assembly: suspended
Ingress protection: IP 66 for the optical part and the driver
Material: anodised aluminium alloy
Colour: inox / black
Optical system: PMMA optics, interchangeable LED module
Number of LEDs: 48 for 144W
Expected useful lifetime: L90F10 – 50 000h, L80F20 – 100 000h
CRI: >70 for 5000K, 4000K; >80 for 3500K, 2700K
Input voltage frequency: 50/60Hz
Power factor: ≥0.95
Inrush current: : 53A / 300µs for 144W
