Material
Cones are rolled from aluminum alloy pipes EN AW-6060. Their base is plated from aluminum alloy plates EN AW-5754.

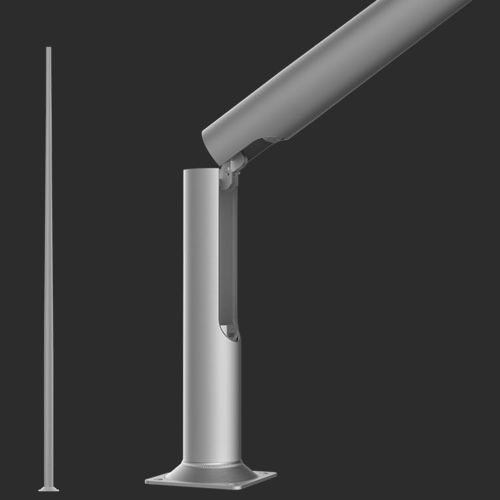

Lowering-and-raising column
Inclination angle of column: from 0° to 90°.
10 anodising colours
Aluminium columns are anodised. Anodising consists in creating the oxide layer on metal surface by electrochemical method. Anodisation not only protects the columns against external factors but also gives possibility to dye aluminum in 10 different colors, each with silk finis version.
Wiring chamber
Each aluminium column has wiring chamber for fuse-box. Wiring chamer cover is being but by laser.
Finish
grinded, anodisedaluminium, option of elastomer protection in the colour of the column up to the height of 350 mm
Base-plate
Base-plate is being pressed together with the conical surface, which stiffen the base.
Dimension of the base plate: 260/200/12mm
Diameter of the column ending: 60mm
Height of the kolumn: 7m
Diameter at the base: 146mm
Wall thickness: 3,5mm
Concrete footing / reinforcement basket type: B-51 / Z-51
