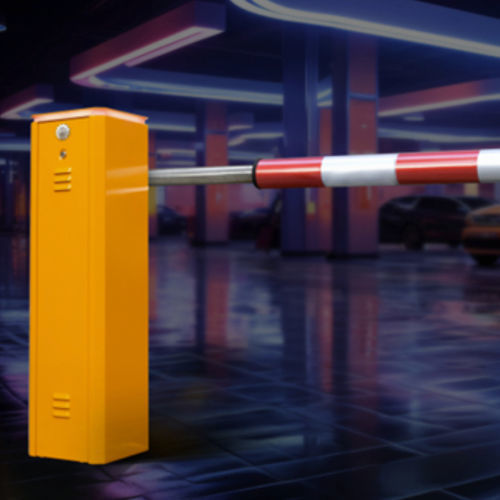

Reinforced parking barrier

protection

Core mechanism is highly integrated design, compact and exquisite structure, and the gearbox output shaft is directly used as a barrier gate spindle, reduced parts, simplify the structure. •The gearbox adopts ball screw pair, with characteristics of simple structure, large axial force, high positioning precision,steel ball rolling friction, high efficiency and long service life and so on. •Using servo motor drive, combined with magnetic coding control technology, controllable speed, precise positioning, strong adaptability, smooth operation, motor acceleration and deceleration dynamic response is relatively fast. •The launch bar state is self-locked, the drop bar has no dead point design, the motor + gearbox split design, the drop bar lever speed is 0.5S.Core mechanism can be universal circular bar handle, die casting, using 200W motor, long life, launch and drop more balanced.Motor uses ring magnetic ring encoder to realize accurate control. •The control board has 8 configurable digital input port, 4 configurable relay output, voltage output, a variety of interfaces. •Gate bar with a new carbon fiber round bar.
