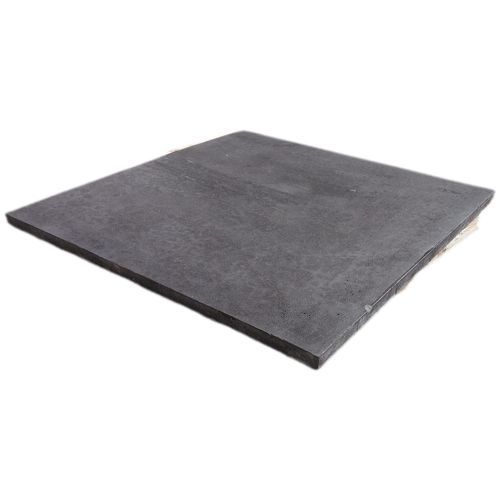

Concrete paving slab MANOIR

indooroutdoorfor step

Description
The Manoir model features a fine contemporary stone grain that gives floor and wall coverings a timeless, classic and understated appearance.

Technical characteristics

• Contemporary concrete slab, available in large formats.
• Finish: fine-grain contemporary stone look, non-slip, suitable for indoor and outdoor use (including pool surrounds).
• Shape & dimensions: Square: up to 100 × 100 cm, thickness 4 cm.
• Weight: up to 88 kg for 100 × 100 × 4 cm.
• Details: straight edges.

Applications

• indoor and outdoor paving
• stepping stones
• stair tread coverings
• wall copings (drip edges on request)
• wall cladding at 2 cm thickness

Colors

• Titanium white
• Natural white
• Stone
• Ochre
• Light greige (Warm)
• Dark greige (Tann)
• Perl grey No.4
• Berg grey No.5
• Summ grey No.8
• Toul grey No.6
• Black
• Terracotta
• Dark ochre

Installation and care
Installation method
Double-bonding; can also be installed outdoors on pedestals or compacted substrate at 4 cm thickness. Compatible with underfloor heating at 2 cm thickness when sufficient thermal inertia is provided. Drain channel pieces with two slopes available on request.

Maintenance
Slabs are protected by a factory-applied treatment. For regular outdoor cleaning use a water jet. Use a degreaser only for persistent stains (food, leaves, etc.). Indoor maintenance: vacuum, mop or steam cleaner. Recommended protective soap: Steinfix 60.

Characteristics / technical specifications

• Model: Manoir
• Material: decorative concrete slab
• Finish: contemporary stone, fine grain
• Anti-slip: non-slip
• Use: indoor and outdoor (including pool surrounds)
• Shape: square
• Maximum dimensions: 100 × 100 cm
• Standard thickness: 4 cm (wall cladding possible at 2 cm)
• Maximum weight (100 × 100 × 4 cm): 88 kg
• Edges: straight
• Installation methods: double-bonding, pedestal installation, compacted substrate, compatible with underfloor heating (2 cm)
• Options: drain channel pieces with two slopes available on request
• Finish / protection: factory treatment (recommended maintenance: Steinfix 60)
