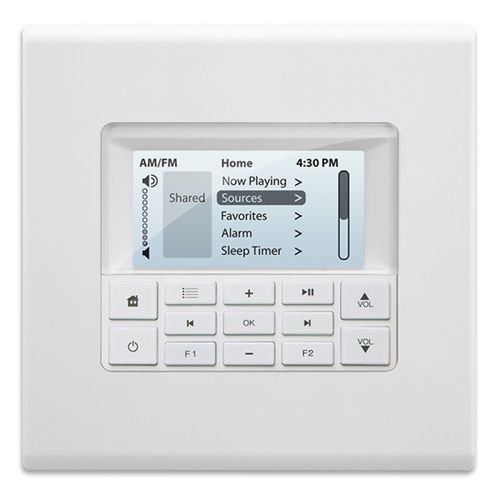

Multimedia equipment control keypad MDK-C6

wall-mounted

The MDK-C6 Multiline Display Keypad is a wall-mounted, standard fit, double-gang keypad for MCA-Series controllers. The keypad's gray scale LCD screen displays real-time information including playlist, channel, artist, song title, genre and more when used with compatible Russound sources. Responsive hard buttons offer access to virtually every system feature and source control function. The buttons and screen brightness are adjustable and can be dimmed at the owner's discretion. High-resolution multiline display Menu-driven interface IR receiver with auxiliary input (plasma proof option) Fits in a standard 2-gang box Flush-Mount mounting option available via Wall-Smart Available in five colors Shipping Dimensions: 7.8" (W) x 3.3" (H) x 7.3" (D), (19.7 x 8.3 x 18.4 cm) Shipping Weight: 1.0 lbs (0.5 kg) CAT-5e Connection: RJ-45 (T568A standard) Display: 70 mm (W) x 35 mm (H), High resolution LCD Power Requirement(s): 275mA @ 12VDC MAX Wall Surface Dimensions: 4.5" (W) x 4.5" (H), (11.43 cm x 11.43 cm)
