Electric hot air generator NO-STRAT

industrial

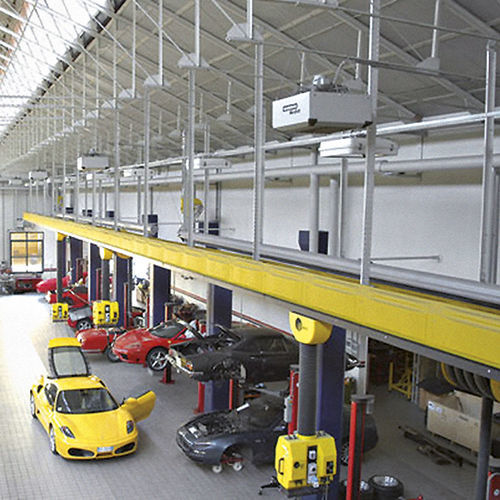

The No-Strat , an anti-air-stratification appliance, recirculates the hot air downwards, hot air that in large spaces heated with warm air (for example, using hot air generators) tends to stratify towards the top. The temperature controller fitted on the appliance can be used to set the air temperature at which the No-Strat starts operation. In addition, it can be used to increase the recirculation air rate in the volume and improve the uniformity of the ambient temperature. The series includes 8 models, with flow-rates from 3,500 to 14,000 m3/h • The casing is manufactured from galvanised prepainted steel sheet (1 mm thick) finished in light grey colour (RAL 9002). The adjustable louvres are held firm by spring loaded pivots. • The fan assembly is made up of the aluminium helicoidal fan, the safety guard support and the three phase V400/3 electric motor with 4 or 6 poles, protection IP44. • A room thermostat is mounted on the unit for the automatic on/off switching of the motor in accordance with the temperature under the ceiling. • 3-phase power switch V400/3 with built-in overload protection.
