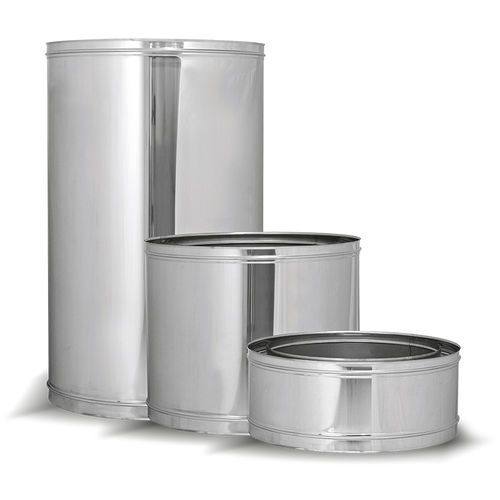

Stainless steel smoke flue INOXSABIANA 50

copper316 stainless steel316 L stainless steel

The InoxSabiana 50 series is the result of an innovative constructional design aimed at achieving a high quality product, versatility and ease of assembly. The choice of the materials, the use of the latest construction techniques, the care paid to every accessory, the conformity with the European EN 1856-1 standard, the continuous checks on the products and the production process guarantee the absolute reliability of the Sabiana flues. The inner wall is made from AISI 316L stainless steel, 0.5 mm thick, while the outer wall is made from AISI 304 stainless steel, 0.5 mm thick, or alternatively copper, 0.6 mm thick. The insulation is rock wool, with a minimum density of 90 kg/m3, 50 mm thick. Longitudinal microplasma welding is used on both the inner and outer wall on each element. All the non-insulated elements are made from AISI 304 stainless steel (aluminium adjustable flashing and storm collar). In addition, the use of an innovative fastening system means that the thermal bridge between the inner and outer wall is reduced to the minimum. The InoxSabiana 50 series includes 6 different inside diameters (from 350 to 600 mm) and a complete series of accessories for solving all problems relating to the discharge of the flue gas from heat generators. • AISI 316 L stainless steel inner wall (austenitic stainless steel 18/10 with low carbon content, grade UNI X 2, CrNiMo 1712). Thickness: 0,5 mm. Properties: high resistance to intergranular corrosion and particularly aggressive products. • AISI 304 stainless steel outer wall (austenitic stainless steel 18/10, grade UNI X 5, CrNi 1810).
