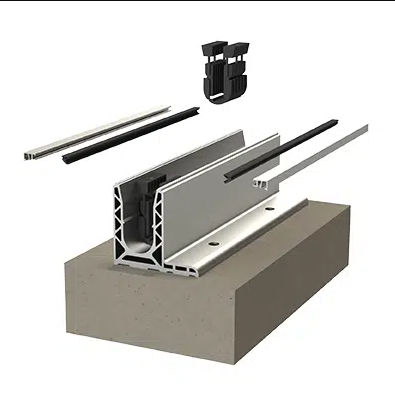

Aluminum railing SABCO 7015

glass paneloutdoorfor balconies

AVANTAGES For tall glass and high-performance projects Features Performance 6 KN Offset floor mounting ONE SIDE or DOUBLE SIDE Residential or public application Mounting : Curved / Tailor-made / High level Compatible for use with high glass above 1.1m Wide range of cladding cover colors available Fastening distance up to 800 mm possible Reduced installation time: SABCO wedge solution, allowing for glass adjustment up to 1 meter high of + or – 15 mm adjustment Glass thickness up to 25.52 mm Glass tchickness [06.06] [08.08] [10.10] [12] [12.12] [15] [19] Type of application Private Public Type of installation Floor Performance 6kN Finishing 00 - Raw 01 - Natural anodized 20 μm Compose this rail according to your project by adding : A – Wedges: according to the thickness of your glazing. B – Claddings: according to your installation configuration, you can customize your finishes. C – Cladding seals : depending on the chosen wedge systems. Don’t forget to complete the rail with these products and with our solutions of dowels, spacers, alignment pins… which you will find in the associated accessories.
