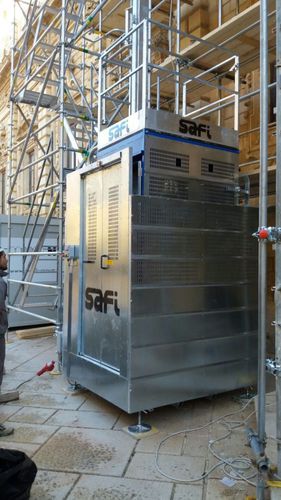

Construction site freight elevator JUNIOR AS

industrial

PERSONNEL AND MATERIAL HOIST JUNIOR AS The abbreviation AS identifies the site hoists manufactured by SAFI Srl for the transport of people and materials at high altitude. In particular, the lift construction JUNIOR AS can ‘bring up to a maximum of 6 persons for a total maximum load of men and material of 500 kg. Construction site hoists JUNIOR AS SAFI Srl room dimensions of 1.30 x 1.00 meters and ‘high 2.30 meters. Construction site hoists JUNIOR AS and ‘able to reach a height of 100.00 meters at a rate’ of 20.00 meters per minute. Maximum height1 (m) - 100 Type of Vertical element 2 - Tubular Height of vertical element - 1492 Weight of vertical element (daN) - 36,5 Max. height without anchorage points (m) - 3,0 Max. distance between anchorage points (m) - 6,0 Total maximum capacity (daN) - 500 N° of people allowed - 6 N° of motor reducers per motor unit - 1 Rack module - 5 Motor power per motor group (kW) - 4,0 Power supply (V) - 230/400 Power supply (Hz) - 50 Current absorption for elevation IN (A) - 8,50 Starting current for elevation IA/IN - 5,7 Max. elevation speed (m/min) - 20,0 Max. configuration base weight (daN) - 1085
