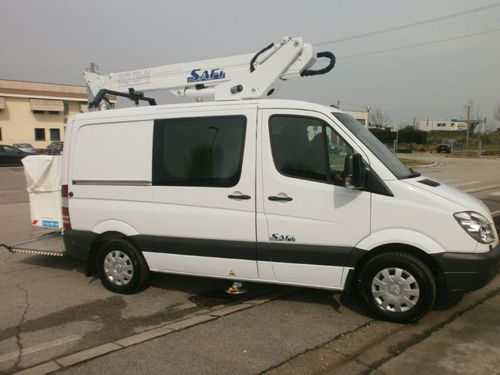

Van-mounted telescopic boom lift SCJ 13for hazardous locationsfor disabled accessfor structure
Add to favorites
Compare this product
Characteristics
- Portability
- van-mounted
- Applications
- for disabled access, for hazardous locations, for structure
- Working height
13 m
(42'07" )- Load
200 kg
(440.9 lb)
Description
Huge boom outreach, high stability, strong structure, make this model one of the best truck mount platform of our range.
Platform -
SCJ13
Truck -
MB 316
Wheel base -
3250
Working height -
13,0
Cage floor height -
13,0
Maximum working side outreach -
7,50 – 120Kg / 6.50 – 200Kg
Cage load capacity -
200
Maximum slope -
6 (Longitudinal) – 3.5 (Transversal)
Outriggers -
45° inclined
Turret rotation -
400
Cage dimension -
1,2 x 0,7 x 1,1
Cage rotation -
———-
Nr. operators -
2
Controls -
Electrohydraulics
Power drive -
Electromechanical
Pump -
Gear system
Oil tank capacity (L) -
50
Max system pressure -
180
Electrical system voltage -
12
Max ground reaction for single outrigger (front/rear) (kg) -
3000
