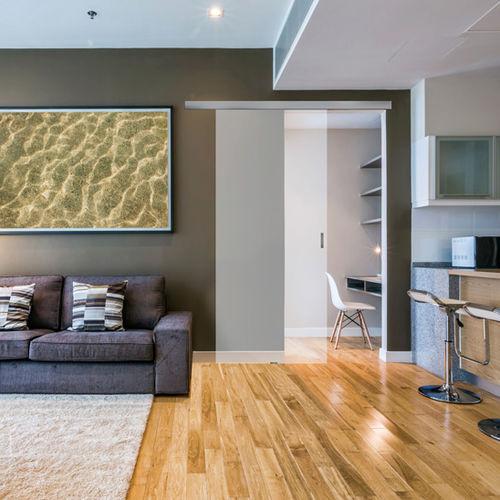

Interior door COMPACT : SV-X70

glassslidingglazed

SV-X70 is a compact sliding solution for frameless glass panels, combining latest technology with an attractive minimalist design. The system is quick and easy to install, and is particularly appropriate for domestic and commercial applications, where it integrates seamlessly into any design. Suitable for glass panels of 8-10mm in thickness, and to a maximum weight of 70Kgs, the SV-X70 conceals all of its sliding components within the top track, giving a pleasing aesthetic appearance. There is a choice between an anti-shock braking system and / or a softbrake function, thereby providing an advanced and pleasing sliding action, whilst at the same time enhancing safety; fingers are protected from becoming trapped on the closing cycle of the glass panel, which itself is also protected from impact damage. Double softbrakes, providing both soft opening and soft closing can be installed on a frameless glass panel to a minimum width of 635mm. SV-X70 is offered for both ceiling and wall mounted applications; for wall mounted installations, the system offers a unique feature, in that the distance between the wall and the glass panel can be adjusted between a minimal 16mm up to 24mm depending on design requirements, thereby adding a useful versatility to the other benefits of the system. SV-X70 is offered in two top track finishes; Satin Anodised Aluminium and a premium Brushed Stainless Steel Aluminium finish. In addition the system has been tested to 100,000 cycles in accordance with European performance standards EN1527 / EN1670.
