Furniture hinge AIR
steelconcealedhome

furniture hinge
furniture hinge
furniture hinge
furniture hinge
furniture hinge
furniture hinge
furniture hinge
furniture hinge
furniture hinge
furniture hinge
furniture hinge
furniture hinge
furniture hinge
furniture hinge
furniture hinge
Add to favorites
Compare this product


Characteristics

Product applications
for furniture
Material
steel
Technical characteristics
concealed
Market
home, shop
Style
contemporary
Opening angle
105°
Other characteristics
Made in Italy
Maximum load

20 kg
(44.1 lb)

Description

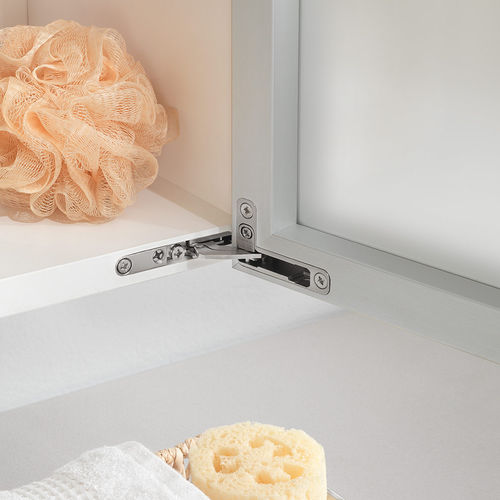

The innovative and revolutionary hinge Despites its compactness and small size, Air delivers full functionality to furniture manufacturers. It is inserted into the top and bottom of the cabinet and the door and is practically invisible. Its small size means that the applications for Air are numerous: kitchens, bathrooms, living- and bedroom furniture or display cabinets. A masterpiece of compactness in design, imperceptible and unseen just like air: Air is the new fusion of technology and aesthetics. Air can be equipped with holders for the hinge cup and arm. The holders make the insertion of the hinge easier as well as hiding any surface imperfections caused by the machining of the cabinet. The hinge is characterised by compactness and by a small size; it incorporates an integrated soft close mechanism for decelerated closing. Also available with the Push self-opening system for handle-less doors. It is fitted to the top and bottom panel of the cabinet. For min. 18 mm thick wooden doors and for aluminium-framed doors. Max. door weight 20 Kg.

Catalogs

Air
Air
16 Pages
AIR
AIR
13 Pages
