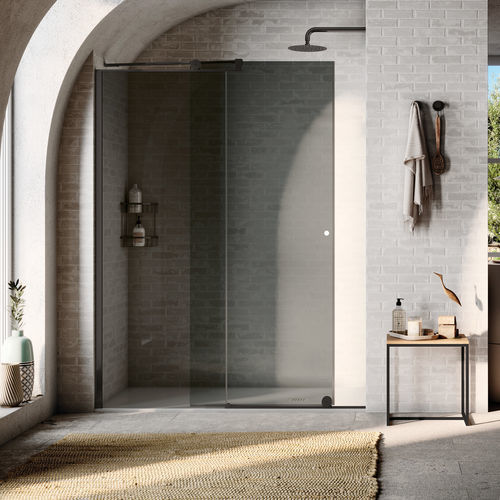

Sliding shower screen PRINCIPALE PER SCORREVOLErectangularcornerfor alcoves
Add to favorites
Compare this product
Characteristics
- Opening system
- sliding
- Configuration
- rectangular
- Location
- corner, for alcoves
- Door material
- tempered glass
- Options
- custom-made, anti-limescale
- Glass finishes
- clear glass, silk-screened glass, satin-finish glass, smoked glass
- Glass thickness
- 8 mm
- Profile type
- framed
- Profile finish
- white, black, chrome, high-gloss, matte black, golden, silver-colored, satin, copper-colored, lacquered
- Market
- commercial
- Width
Min.: 100 cm
(39.37 in)Max.: 180 cm
(70.87 in)
Description
Product overview
Glass wall composed of a fixed panel and a lateral sliding panel. The sliding panel runs smoothly thanks to two robust wheels positioned at different, opposing heights to ensure optimal opening fluidity.
Category
Shower enclosures / Open system
Shower enclosures profiles
Panels (glass types available)
Finishes / Patterns (examples shown)
Photo gallery
Multiple product images and gallery available showing different views and finishes.
Downloadable documentation
Product-related PDF datasheets and drawings are provided (technical datasheets and DWG/CAD files available).
Measurements
Door | Extension [cm] | Opening [cm]
B4600 | 100 | 42
B4601 | 120 | 52
B4602 | 140 | 62
B4603 | 160 | 72
B4604 | 180 | 82
Fixed panel | Extension [cm] | Opening [cm]
B4650 | 68-70 | //
B4651 | 78-80 | //
B4652 | 88-90 | //
B4653 | 98-100 | //
Technical specifications
Glass wall composed of a fixed panel and a lateral sliding panel. The sliding panel runs smoothly thanks to two robust wheels positioned at different, opposing heights to ensure optimal opening fluidity.
Category
Shower enclosures / Open system
Shower enclosures profiles
- Aluminium finishing profiles: brilliant chrome
- Profile finishes available: Matte Amber L86, Matte Sage L73, Matte Black L96, Matte White L91, Polished Brilliant ULU
Panels (glass types available)
- Tempered satin grey glass - GS
- Tempered mirror glass - SY
- Extra-clear tempered glass - TE
- Cloud-gradient tempered glass - TN
- Satin band H.100 tempered glass - RF
- Tempered satin glass - AS
- Tempered transparent grey glass - TG
- Tempered transparent glass - TR
Finishes / Patterns (examples shown)
- Fronda
- Brezza
- Stampe-DN_ROMBI
- Stampe-DM_WAVE
- Stampe-DK_EXAGON
- Stampe-DH_CUBIX
- Stampe-DG_Griglia
Photo gallery
Multiple product images and gallery available showing different views and finishes.
Downloadable documentation
Product-related PDF datasheets and drawings are provided (technical datasheets and DWG/CAD files available).
Measurements
Door | Extension [cm] | Opening [cm]
B4600 | 100 | 42
B4601 | 120 | 52
B4602 | 140 | 62
B4603 | 160 | 72
B4604 | 180 | 82
Fixed panel | Extension [cm] | Opening [cm]
B4650 | 68-70 | //
B4651 | 78-80 | //
B4652 | 88-90 | //
B4653 | 98-100 | //
Technical specifications
- System type: Glass wall with fixed panel + sliding panel
- Sliding mechanism: Two robust wheels at opposing heights for smooth opening
- Profiles: Aluminium finishing profiles (brilliant chrome) with additional finish options
- Available glass panels: Tempered glass in multiple finishes (satin, mirror, extra-clear, gradient, banded, grey variants)
- Door article codes and sizes: B4600 (Ext 100 cm - Opening 42 cm), B4601 (120 - 52), B4602 (140 - 62), B4603 (160 - 72), B4604 (180 - 82)
- Fixed panel article codes and sizes: B4650 (68-70 cm), B4651 (78-80 cm), B4652 (88-90 cm), B4653 (98-100 cm)
- Available documentation: product PDFs and CAD drawing files (datasheets / technical drawings)
