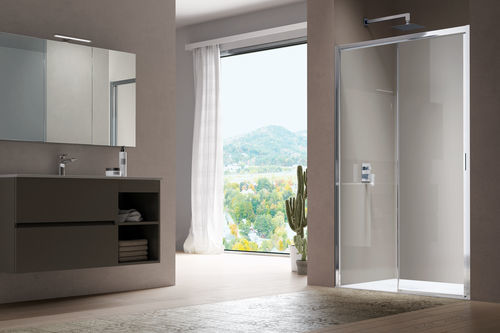

Sliding shower screen AMERICA QUATTRO SP

tempered glasssatin-finish glassclear glass

Description
Two-panel shower screen with sliding side opening. Model suitable for most installations and offered in a wide range of sizes.

Profiles

• Matt black "L96"
• Matt white "L91"
• Polished bright "ULU"

Tempered glass panels

• Satin band H.100 "RF"
• Transparent glass "TR"

Documents available (names)

• Assembly instructions
• Spare parts America quattro SP
• Product datasheet_Samo 80

Sizes
Article | Adjustable range [cm] | Opening [cm]
B6340 | 96-100 | 40
B6341 | 100-104 | 41
B6342 | 106-110 | 44
B6343 | 110-114 | 46
B6344 | 116-120 | 49
B6345 | 120-124 | 51
B6346 | 126-130 | 54
B6347 | 130-134 | 54
B6348 | 136-140 | 59
B6349 | 140-144 | 59
B6350 | 146-150 | 64
B6351 | 156-160 | 69
B6352 | 160-164 | 69
B6354 | 166-170 | 74
B6356 | 170-174 | 74
B6358 | 176-180 | 79

Fixed wall - Article | Adjustable range [cm] | Opening [cm]
B6321 | 63-65 | //
B6322 | 67-69 | //
B6323 | 69-71 | //
B6324 | 73-75 | //
B6325 | 77-79 | //
B6326 | 79-81 | //
B6327 | 83-85 | //
B6328 | 87-89 | //
B6329 | 89-91 | //

Features / Technical specifications

• Type: Two-panel shower screen with sliding side opening
• Suitable for most installations
• Available in a wide range of sizes (article codes B6340–B6358 for doors and B6321–B6329 for fixed walls)
• Profiles finishes: Matt black "L96", Matt white "L91", Polished bright "ULU"
• Tempered glass panels with options: Satin band H.100 "RF", Transparent glass "TR"
• Variants and article codes listed in the sizes table
• Technical documentation available: assembly instructions, spare parts and product datasheet
