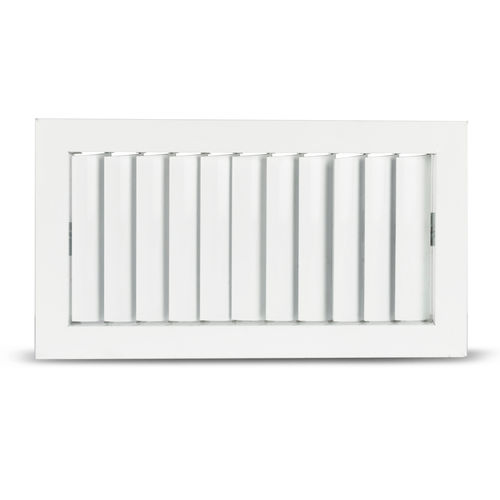

Extruded aluminum ventilation grill 4SVrectangularsquareinterior
Add to favorites
Compare this product
Characteristics
- Material
- extruded aluminum
- Shape
- rectangular, square
- Interior/exterior use
- interior
- Market
- commercial, home
- Color
- white, gray
- Other characteristics
- for air supply and exhaust, adjustable, single deflection
- Width
Min.: 100 mm
(4 in)Max.: 500 mm
(20 in)- Length
Min.: 200 mm
(8 in)Max.: 1,000 mm
(39 in)
Description
Supply air grilles are suitable for use in ventilation, heating and air-conditioning systems. Thanks to the adjustment of the movable blades, optimum air distribution is achieved.
Model 4SV. Grille with curved vertical movable blades, unidirectional.
Made of extruded aluminium. Standard finish in matt silver anodised or white lacquer similar to RAL 9016. Other colours available on request.
Fixing systems:
(C) Clip (standard)
(T) Visible screw (optional). Hole dimensions (L-7) x (H-7)
(P) Concealed screw fixing (optional)
Accessories:
(MM) Aluminium mounting frame. Hole dimensions (L+7) x (H+7)
(X) Control damper, horizontal blades parallel to the L dimension. Type CRX
(Z) Volume control damper, vertical blades parallel to H. Type CRZ.
