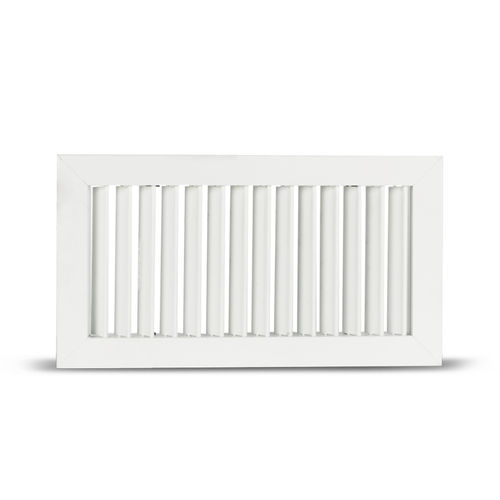

Extruded aluminum ventilation grill 2FV

rectangularinteriorcommercial

Return grilles are suitable for use in ventilation, heating and air conditioning installations. The 2 and 8 series are a great option for concealing the duct cavity, thanks to their fixed fins and their angle of inclination. The 9 series is a simple and effective solution for concealed returns as well as high flow recovery requirements. 2FV Grille with fixed vertical blades at 40º. Made of extruded aluminium. Standard finish in matt silver anodised or white lacquer similar to RAL 9016. Other colours available on request. Fixing systems: (C) Clip (standard) (T) Visible screw (optional). Hole dimensions (L-7) x (H-7) (P) Concealed screw fixing (optional) Accessories: (MM) Aluminium mounting frame. Hole dimensions (L+7) x (H+7) (X) Control damper, horizontal blades parallel to the L dimension. Type CRX (Z) Volume control damper, vertical blades parallel to H. Type CRZ.
