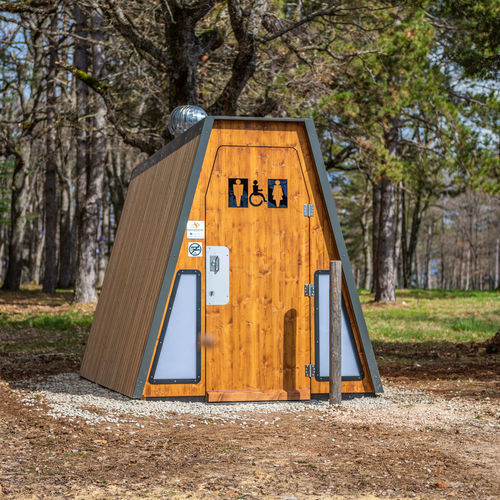

Dry toilet cabin SANILIGHT

linoleumchestnutsteel

Overview
SANILIGHT is a prefabricated public dry toilet designed for natural and urban outdoor sites, from mountain resorts to coastlines. Heliportable and easy to deploy, it combines durable 3‑ply spruce construction with hygienic cabin finishes and accessibility options for people with reduced mobility.

Standard building

• Base structure: Class 3 structure, Class 4 envelope
• Primary material: 3‑ply spruce wood panels
• Cladding: vertical spruce (Class 3)
• Roof: steel sheet (standard RAL 7022)
• Cabin lining: white HPL
• Flooring: Marmoleum for heavy traffic
• Natural lighting: white translucent polycarbonate on front façade
• Anti‑vandal door handle and stainless steel reinforcement
• Support bar and PRM access

Cabin — comfort & hygiene
SANILIGHT cabins are designed for user comfort and simplified maintenance. Materials and equipment provide a clean, welcoming and hygienic interior adapted to public use and accessibility requirements.

• Hand sanitiser dispenser
• Toilet paper dispenser
• Coat hooks (option: reinforced hook)
• Interior and exterior signage
• Optional educational panel

Options

• Power: photovoltaic panels or grid connection
• Lighting: recessed anti‑vandal low‑consumption spot with dusk/motion sensor
• Door opening: right or left
• Programmable locking system
• Cabin threshold channel and manual pedal operation
• Storage cabinet
• Mountain kit: building raised 30 cm, CompactNoir base protection (30 cm), door stop, internal black grating, chimney guying (min. base height 60 cm)

Finishes

• Cladding options: chestnut, Douglas fir, chestnut shingles, HPL, larch, ready‑to‑clad
• Alternative flooring: checker plate aluminum sheet
• Custom roof RAL available

Installation environments

• Ski resorts
• Tourist sites and viewpoints
• Nature parks and trails
• Multi‑sport parks
• Playgrounds and community gardens
• Lakes and water‑sports bases
• Golf courses and leisure centres
• Cemeteries

Additional information
SANILIGHT has a 3‑ply panel structure with northern fir cladding in Montana profile, planed and brown‑preserved, adapted to snowy environments. Prefabricated and deliverable by low‑loader, 4×4, truck, boat or helicopter, it enables fast on‑site installation (typically 1 day) and cost savings versus conventional water toilets. Installed on 400+ sites with long field experience.

Technical specifications

• Model: SANILIGHT
• Structure: 3‑ply panels (Class 3)
• Envelope: Class 4
• Building material: spruce 3‑ply panel
• Cladding: spruce (Class 3) — other finishes available
• Roof: steel sheet standard RAL 7022 (custom RAL available)
• Cabin lining: white HPL
• Flooring: Marmoleum (optional checker plate aluminium)
• Natural lighting: translucent polycarbonate glazing on front façade
• Doors: anti‑vandal handle, INOX reinforcement, reversible opening
• Accessibility: PRM compliant options
• Ventilation: natural (standard) or electric (option) — PV or grid supply
• Power: photovoltaic or grid connection
• Lighting: recessed anti‑vandal spot with dusk/motion sensor
• Locking: programmable system
• Special equipment: hand sanitiser, paper dispenser, coat hooks, signage, support bar, storage cabinet
• Mountain adaptations: +30 cm elevation, CompactNoir base, internal grating, chimney guying, min. base 60 cm
• Transport & installation: prefabricated, deliverable by road, sea or helicopter; rapid on‑site installation
