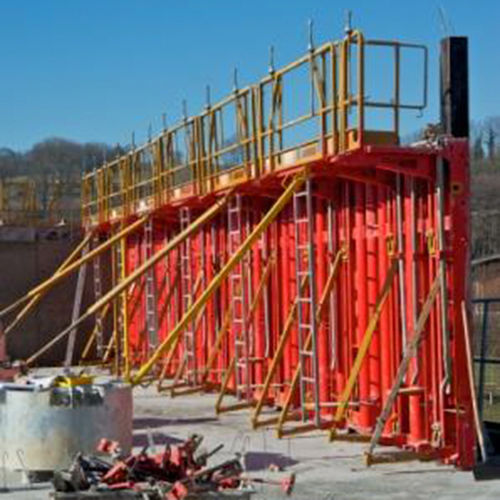

Frame formwork SC 9015

metalwall

SC 9015 is compatible with all the range of SATECO formworks (including circular formworks). The accessories are compatible with SC 9010 shutter. Improved productivity on the worksites : optimised concreting speed including selfplacing concrete. Pressure 12 tonnes / sqm : unlimited speed with walls up to 7,5m. Pressure 15 tonnes / sqm : unlimited speed with walls up to 8,9m. The SC 9015 shutter has many assets. Always easier to set up, it offers to the users optimized productivity on their worksites with greater concrete quality. UNALTERABLE FRAME WITH ROUNDED OUTLINES VERTICAL STIFFENERS ALLOWING THE FLEXIBILITY OF THE LEVELS OF RODS WAYTHROUGHS INTEGRATED UPPER STRENGHTENER ARTICULATED MONOBLOC WORKING BOARD WITHOUT BRACE BAR AND WITH WIND STABILITY FIXING POINT UNIVERSAL SPACER UNITS (RODS LEVELS : 200 OR 300 MM FROM THE BOTTOM, ABOVE THE PANEL, AND 1900 MM IF SUPERPOSED) FAST AND HIGHLY ACCURATE VERTICAL ASSEMBLING (TOLERANCE OF MORE OR LESS 0,25 MM –3 CM ADJUSTMENT IN ALL DIRECTIONS) INTEGRATED SAFETY ACCESSORIES, PACKED AND FIXED WITH SECURED PEGS
