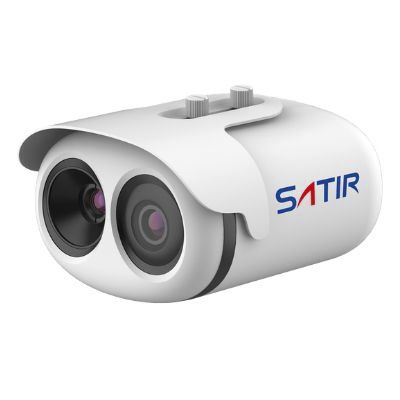

Fixed thermal camera CK350-F

surface-mountedindoorcolor

Fever Screening System | CK350-F The CK350-F is a fever screening system suitable to be used in areas where there are large groups of people such as airports, seaports and public places such as shopping centres. It is a fixed camera that has a powerful 384x288 IR detector which delivers 110,592 pixels to the end-user's screen. The thermal video/images have a temperature measurement range of 0°C ~ +60°C and measurement accuracy of ≤ 0.3 ℃ which makes this ideal for fever screening programmes. It also comes with a range of temperature measurement tools which includes Motion detection, Disk alarm, I/O alarm, Temperature alarm and many more. The CK350-F allows non-invasive fever screening to take place meaning there is no major distruptions to the flow of people in an area. Key Features 384×288 IR Detector Specially designed optical system for medical diagnosis Powerful analysis tools Operation software optimised for medical diagnosis & analysis Specifications Camera Name: CK350-F Thermal Camera Detector Type Uncooled IRFPA Microbolometer Effective Pixels 384(H) ×288(V) Pixel Size 17μm Thermal Sensitivity (NETD) 50mK @F1.0, 300K Spectral Range 8~14μm Image Setting Polarity LUT/ DVE/ Mirror/ FCC /3D DNR/Brightness/Contrast/ ROI Color Palettes Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes Thermal Lens Lens Type Fixed Focus Control Manual Focus Focal Length 8mm F No. F1.0 Angle of View H: 46°, V:35.3° Visible Camera Image Sensor 1/1.9" Sony CMOS Effective Resolution 1920(H)×1080(V) Shutter Speed 1/50 ~ 1/64,000s Wide Dynamic Range True WDR 120dB Min. Illumination Color: 0.01Lux @(F1.2, AGC ON) B/W: 0.001Lux @(F1.2, AGC ON)
