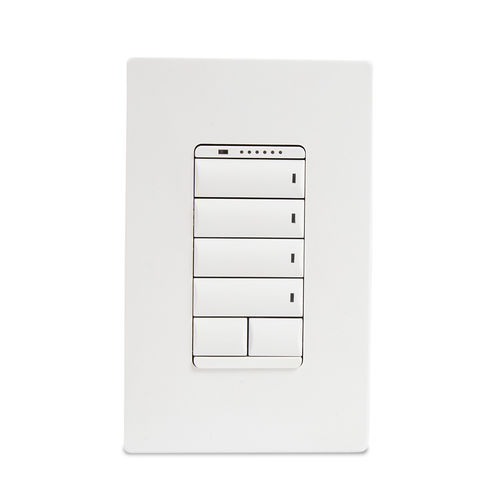

Home automation system control keypad WPX-SWLV06-00

for lightingwall-mountedwireless

The Wireless Low Voltage Keypad with DMX Control acts as both a programmable keypad and a full-featured DMX controller, with wireless communication to the Savant Host. Just like Savant's stand-alone DMX controller, the on-wall DMX controller uses the RDM setup process to automatically discover all light strips or fixtures on the channel; with support for up to 32 fixtures or strips. Buttons on the Configurable Keypad can be field-configured with up to 8 different layouts and programmed to control individual loads or activate scenes including lighting, shades, climate, AV and other services. Faceplates and optional button engraving sold separately. RDM support Communicates via 802.11 b/g/n wireless network Field-configurable to accommodate 3, 4, 5 and 6 button layouts. Up to 8 different layout options. Backlit buttons with custom button engraving available Ambient Light Sensor - Detects the level of ambient light in the room and adjusts the LED brightness on the front panel Fits standard decorator-style wall plates Simple to configure and deploy using Blueprint Lighting Manager Environmental: Temperature - 32° to 104° F (0° to 40° C) Humidity - 10% to 90% Relative Humidity (non-condensing) Dimensions: Height - 4.13in (10.50cm) Shipping 7.0in (17.78cm) Width - 1.72 inch (4.37 cm) Shipping 4.5in (11.43cm) Depth - .97 inch (2.46 cm) Shipping 3.0in (7.62cm) Weight - .30 lb. (0.13 kg). Shipping 0.60lb (0.272kg) Power: Input - 24V DC Average Power Consumption - 5W Maximum Power Consumption - 12W Minimum Supported Release: da Vinci 10.0
