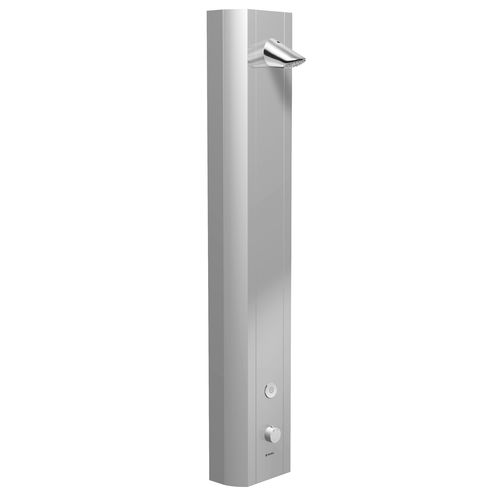

thermostatic shower column / electronic / commercial
LINUS DP-C-T

{{requestButtons}}

Characteristics

  • Type:

    thermostatic, electronic

  • Market:

    commercial

Description

CVD-Touch electronic On/Off/time limit - thermostat - stagnation flush
Suitable for connection to eSCHELL water management Server.
Shower panel made from solid extruded aluminium profile with high-quality anodised surface and integrated SCHELL shower fitting type: LINUS D-C-T.
For comfortable parameter adjustment and diagnosis of the CVD-Touch electronic SCHELL offers the eSCHELL USB-Adapter SSC and eSCHELL Software SSC.
Easy to mount and service, due to the pivoting front panel, suitable for connections from the rear and for wall-mounted connections from above. Fitting casing with additional adapter for solenoid valve for thermal disinfection.
With shower head COMFORT, 13°
SCOPE OF DELIVERY:
panel wit preassembled LINUS shower fitting with integrated cartridge solenoid valve 6V and thermostat cartridge, including piping between fitting and connection to shower head
water-proof CVD-Touch electronic IP 65 with battery level indicator
thermostat cartridge with safety lock in the event of failure of cold water
thermostat button with hot water stop at 38 °C
locking disc for maximum temperature limiting (protection against scalding)
2 backflow preventers (BP, DIN EN 1717: EB)
shower head COMFORT, flow rate max. 9 l/min independent of pressure
fastening material
connection accessories
