Mounting module wet construction with concealed cistern
U-shape non self-supporting mounting frame of galvanised steel plate. To wall up, under- and to wall in.

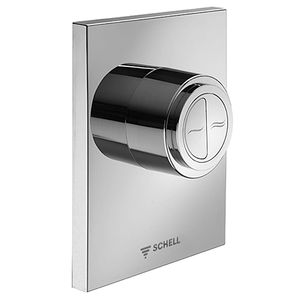

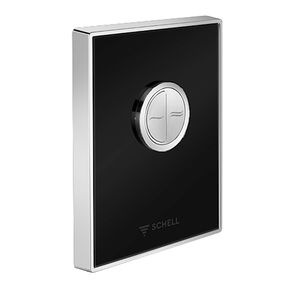

The activation of the dual flush takes place via SCHELL WC operating panels.
water saving: delayed filling process saves appr. 0,5 l/flush
SCOPE OF DELIVERY:
fitting connection R 1/2 ext. thread, above
WC concealed cistern 80 mm, operation from ahead
dual flush
SCHELL regulating angle valve, filling valve, noise class I
flush pipe Ø 45 mm, with plug
PP-arch of discharge Ø 90 mm, with plug
reducer Ø 90 / 110 mm
WC connection fittings Ø 90 mm
WC bolts M 12 x 200 mm, protection hose, nuts and cover caps
wall fastening material
plaster base mat
FIELD OF APPLICATION / TECHNICAL DATA:
for wall-mounted WC's with 180 or 230 mm mounting dimension
factory setting: 3 and 6 l
small flush volume: 3 / 3 l
large flush volume: 6 / 7 l, on demand 5 l
DETAILS:
Test Mark: certificates on request
Weight: 7.36 kg/pc.
Packaging unit: 1
Dimension: DN 15 R 1/2 ext. thread
