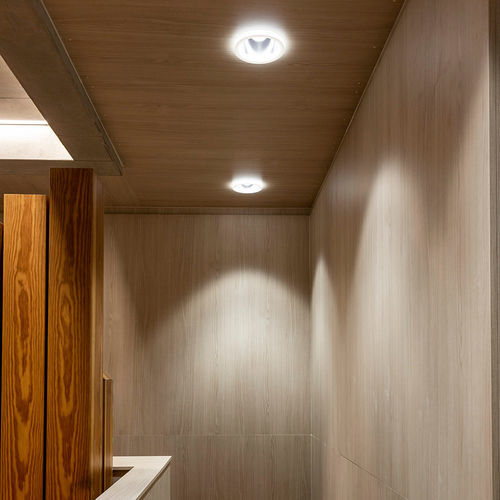

Recessed downlight ALPHABET ZONO
for ceilingLEDhorizontal

recessed downlight
recessed downlight
recessed downlight
recessed downlight
recessed downlight
recessed downlight
recessed downlight
recessed downlight
Add to favorites
Compare this product


Characteristics

Type
recessed, for ceiling
Light source
LED
Shape
round, square, vertical, horizontal
Protection class
IP20, IP40, IP54
Interior/exterior use
indoor
Applications
commercial
Material
aluminum, PMMA
Color
white, silver-colored
Style
contemporary
Number of lights
1 light
Length

165 mm, 170 mm, 195 mm, 200 mm
(6 in, 7 in, 8 in, 8 in)

Width

49 mm, 130 mm, 172 mm, 200 mm, 207 mm
(2 in, 5 in, 7 in, 8 in, 8 in)

Power

28 W

Luminous flux

2,910 lm, 2,950 lm, 3,120 lm, 3,210 lm

Color temperature

Max.: 6,500 K

Min.: 2,700 K

Color rendering index (CRI)

83 unit

Description

ALPHABET ZONO family offers high-output LED downlights both round and square designed to set new standards in the downlight segment. Thanks to numerous versions and special designs, such as insect-proof designs or those with 49mm recessed depth, this product line copes with just about any building challenge. Highest quality class:Featuring a shielding angle of α >30° the downlights afford perfect glare protection across the board, with ɣ 65° <1000cd/m² these downlights comply with the highest grade of glare control in accordance with EN12464-1 and are therefore suitable for all VDU applications. This is ideal if the display screen quality can only be defined at a later stage. Best efficiencies :Thanks to the highly efficient light chamber and the light-proof housing light is only directed where it is needed. This makes for high output solutions of up to 3370Llm with system efficiencies of up to 154Llm/W, this results energy savings and short pay-back periods. Wallwasher-Downlight :Wallwasher-Downlights combine the uniform, general illumination benefits of downlights with the vertical surface illumination advantages offered by wallwashers. By combining both luminaire types in just one housing you save investment costs and obtain a consistent ceiling layout. Both the horizontal and vertical room peripheries are optimally and evenly lit.
