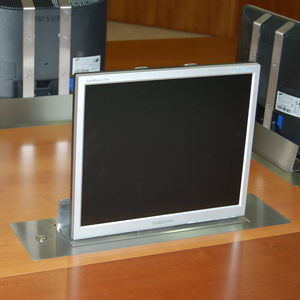

UP-DOWN SERIES Built with high quality and low maintenance components the up-down mechanisms are robust and easy to install, designed to move / hide TV screens, cabinets, tables, columns etc. in the civil, industrial and naval fields. Capacity and run vary according to the various models, indicatively the lifting capacity ranges from 25 to 100 kg while the excursion from 660 to 950 mm. Dimensions and characteristics can be customized according to customer needs. Also available in the 5G version, even slimmer! MATERIALS USED FOR CONSTRUCTION: Anticorodal aluminium with anti-corrosion anodic oxidation treatment and stainless steel. MECHANICAL CHARACTERISTICS: Internal round profile guides with pillow sliders that guarantee maximum gripping. Vertical movement on parallel axes transmitted by 12 / 24V DC gear motors. Stroke adjustment with microswitches. With limit switches of run for safety. Support brackets for TV screens designed for all models equipped with VESA connection. ELECTRICAL CHARACTERISTICS: Logic control with customizable operating software that can be interfaced with the main home automation systems. Equipped with safety device to avoid overloads and polarity reversals Control by buttons or by 2-channel radio control. Pre-wired clean contacts for button integration. Wiring housed in flexible sheath. Optional electronic safety sensor.
