Lift system for TV TML/TSL SERIES

lift system for TV
lift system for TV
lift system for TV
lift system for TV
lift system for TV
lift system for TV
Add to favorites
Compare this product

Description

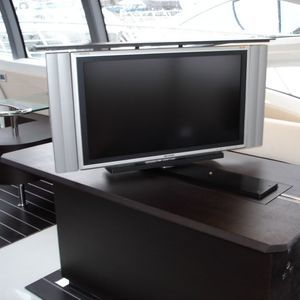

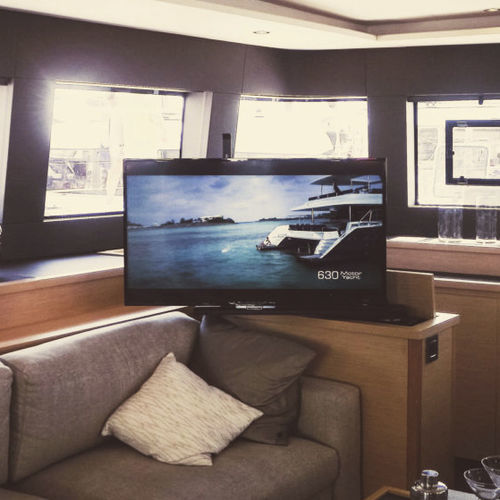

LIFT WITH LATERAL ROTATION Thanks to the decentralized rotation fulcrum, the TML-TSL mechanisms allow the screen to rise and rotate up to 90 ° allowing optimal viewing even when the compartment that houses it is located in a corner of the room. Rotation can be manual or electric and can be managed via a button or with a convenient radio control. To maintain maximum usability of the useful volume inside the cabinet that houses it, the new series of this type of mechanism has very small dimensions, unique on the market, also in the version with automatic opening / closing of the TV lift housing compartment . All models with rotation have a safety device that excludes the up and down movement if the TV is not in an allowed position. MECHANICAL CHARACTERISTICS: Internal round profile guides with pillow sliders that guarantee maximum gripping. Vertical movement on parallel axes and horizontal movement on central swivel transmitted by 12 / 24V DC gear motors. Stroke adjustment with microswitches. With limit switches of run for safety. Support brackets for TV screens designed for all models equipped with VESA connection. ELECTRICAL CHARACTERISTICS: Logic control with customizable operating software that can be interfaced with the main home automation systems. Equipped with safety device to avoid overloads and polarity reversals Control by buttons or by 4 channel radio control. Pre-wired clean contacts for button integration. Wiring housed in flexible sheath. Optional electronic safety sensor.
