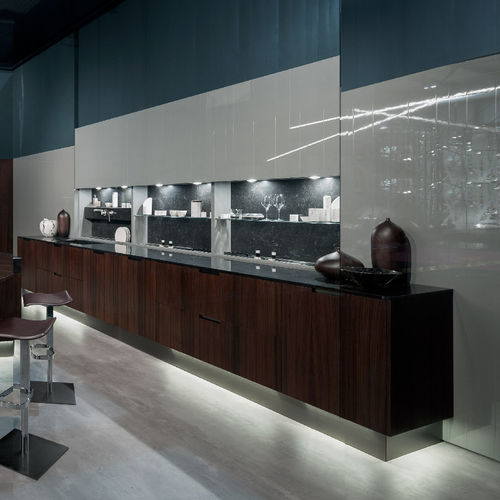

Aluminum sliding system PANEL SYSTEM SERIES

doorfor furniturevertical

PANEL SYSTEM SERIES HORIZONTAL/VERTICAL SINGLE PANEL MOVING SYSTEM The panel system can be used to move doors, panels, pictures. It allows you to conceal an object that you do not want to remain visible when not in use, such as a television, a safe, an electrical panel and much more. TWIN PANEL SYSTEM SERIES DOUBLE PANEL HORIZONTAL/VERTICAL MOVING SYSTEM This system allows the simultaneous and synchronized movement of 2 panels. For example, if installed on the doors of a TV cabinet, it reveals the screen only at the moment of use. The sliding panels can be operated via a push-button or a convenient radio control. Mechanical Features •Internal round profile guides with pillow sliders that guarantee maximum gripping. •Horizontal/vertical movement transmitted by 12 / 24V DC gear motors. •Stroke adjustment with microswitches. •With limit switches of run for safety. •Support brackets for TV screens designed for all models equipped with VESA connection. Electrical Characteristics •Logic control with customizable operating software that can be interfaced with the main home automation systems. •Equipped with safety device to avoid overloads and polarity reversals •Control by buttons or by 2-channel radio control. •Pre-wired clean contacts for button integration. •Wiring housed in flexible sheath. •Optional electronic safety sensor.
